Assembly

SHIFT FORK AND FORK ROD

Assembly

For assembly procedures other than the following items, refer to "SHIFT FORK AND FORK ROD" in "Assembly" Assembly.

CHECK SHIFT PIN

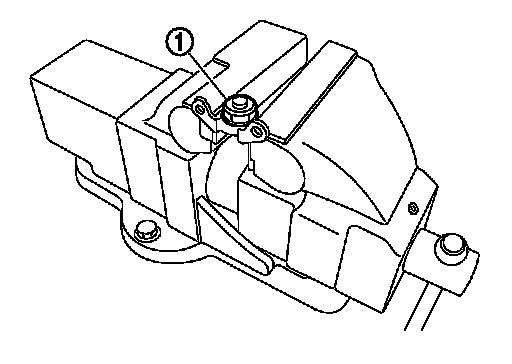

1.Set the control bracket to a vise and then install check shift pin (1) to control bracket.
2.Tighten check shift pin to the specified torque.

STRIKING ROD

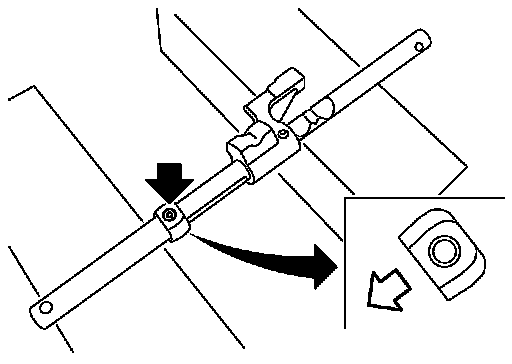

1.Install low/high control lever to striking rod and then install retaining pin (Black arrow) to low/high control lever using a pin punch
[Commercial service tool].

CAUTION:
- Never reuse retaining pin.
- Be careful with the orientation of low/high control lever and striking rod.
- Assemble retaining pin from the direction shown by the arrow in the figure until it becomes flush with the end surface of low/high control lever.

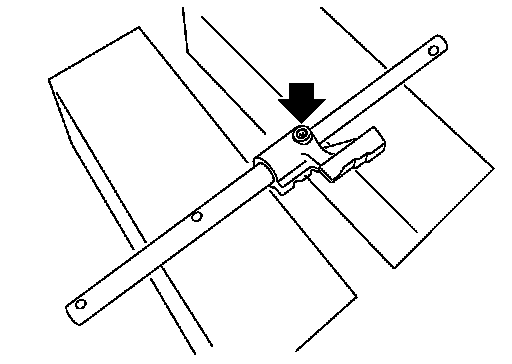

2.Install stopper ring to striking rod and then install retaining pin (Black arrow) to stopper ring using a pin punch [Commercial service tool].






CAUTION:
- Never reuse retaining pin.
- Be careful with the orientation of stopper ring and striking rod.
- Assemble retaining pin from the direction shown by the arrow in the figure until it becomes flush with the end surface of stopper ring.
