Disassembly

MAIN DRIVE GEAR

Disassembly

1.Remove 5th baulk ring, pilot bearing spacer, and main pilot bearing from main drive gear.

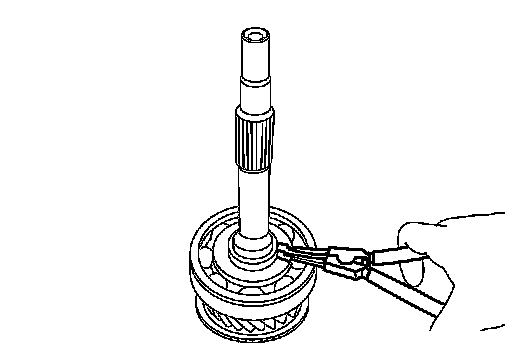

2.Remove snap ring from main drive gear using snap ring pliers.
3.Remove main drive gear bearing with the following procedure.

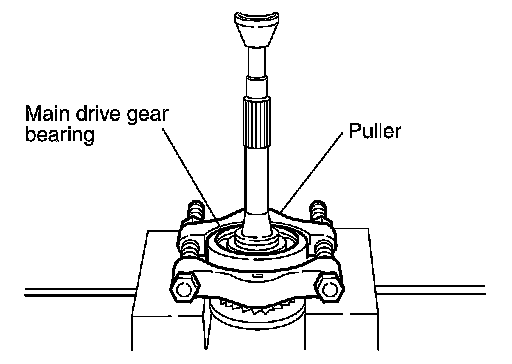

a.Set a puller [Commercial service tool] to main drive gear bearing.
b.Remove main drive gear bearing from main drive gear with a pressing machine.

CAUTION:
Never drop main drive gear.
