Removal and Installation

PARK/NEUTRAL POSITION SWITCH

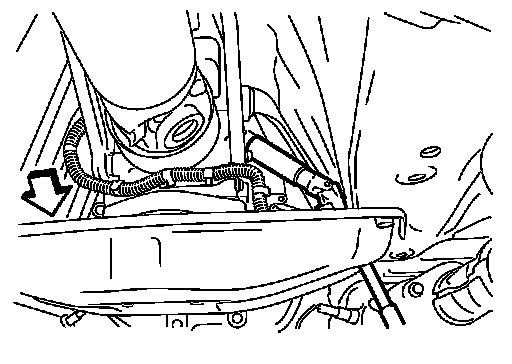

Removal and Installation


REMOVAL

1.Disconnect the battery cable from the negative terminal.
2.Disconnect park/neutral position (PNP) switch connector.





3.Remove park/neutral position (PNP) switch and plunger from rear extension.






INSTALLATION

1.Install plunger to rear extension.

CAUTION:

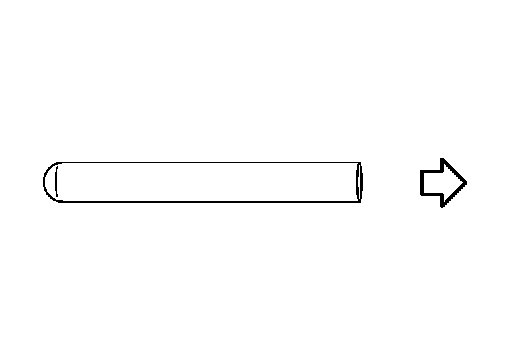

Be careful with orientation of plunger.










2.Temporarily tighten park/neutral position (PNP) switch onto rear extension by rotating once or twice.

CAUTION:
Remove old sealant and oil adhering to threads.

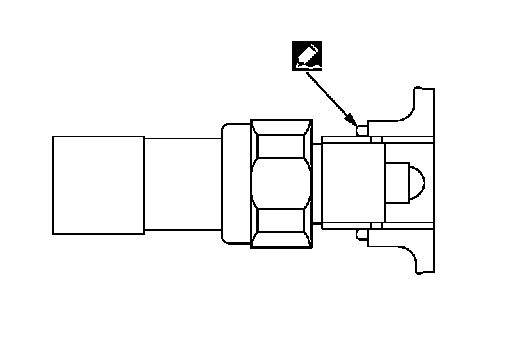

3.Apply recommended sealant to threads of park/neutral position (PNP) switch as shown in the figure.
-Use Genuine Silicone RTV or an equivalent. Refer to GI22, "Recommended Chemical Products and Sealants".
4.Tighten park/neutral position (PNP) switch to the specified torque.
5.For the next step and after, install in the reverse order of removal.
