Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Testing and Inspection >> Rear Propeller Shaft 3S80A-R

Rear Propeller Shaft 3S80A-R




NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

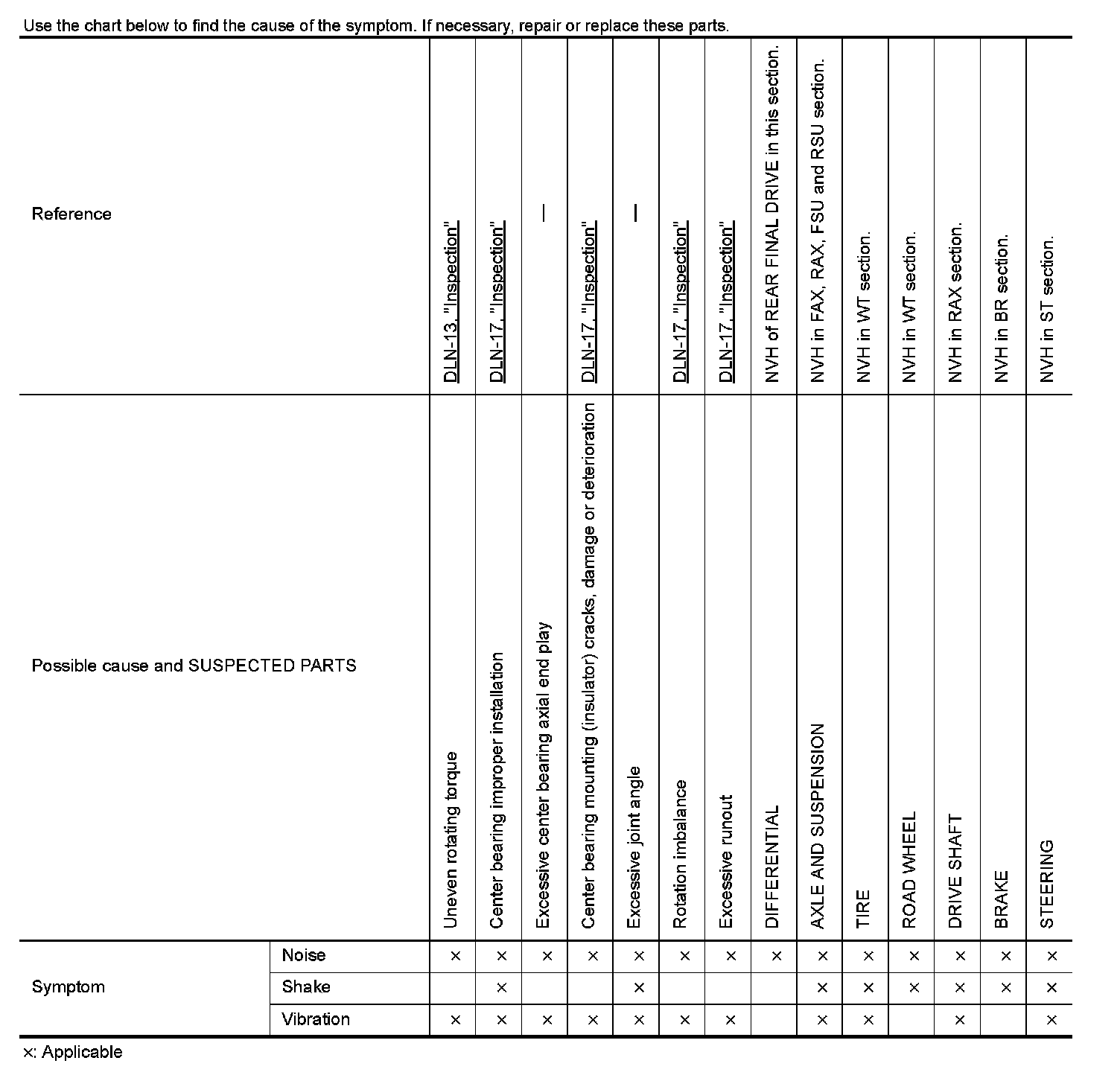

NVH Troubleshooting Chart

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
