Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Testing and Inspection >> Rear Propeller Shaft 3S80A

Rear Propeller Shaft 3S80A




NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

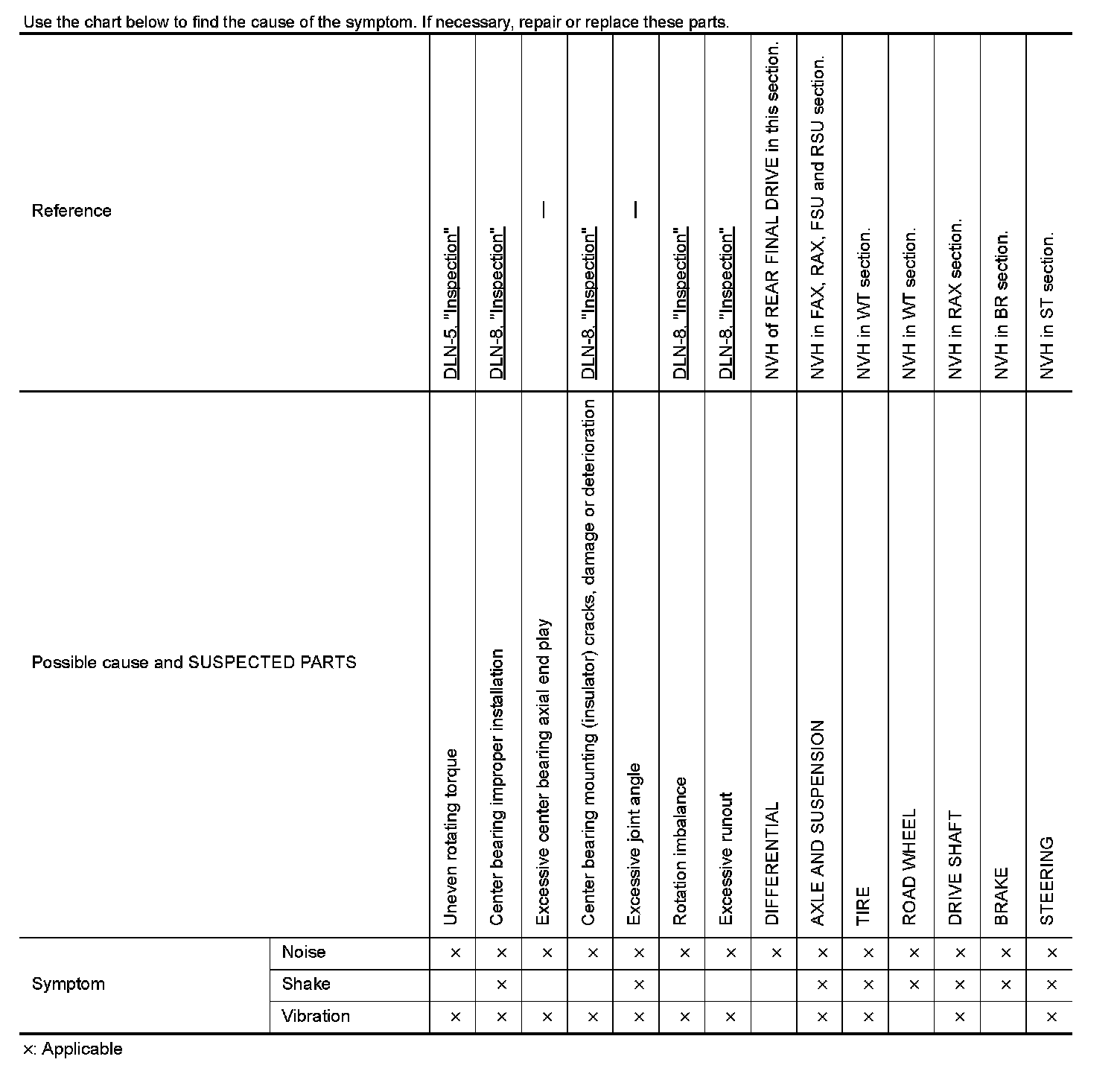

NVH Troubleshooting Chart

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
