Removal and Replacement

CLUTCH PEDAL

Removal and Installation


REMOVAL

1.Remove kicking plate inner and dash side finisher. Refer to "Removal and Installation" Removal and Installation.
2.Remove instrument lower panel LH. Refer to "M/T MODELS : Removal and Installation" Removal and Installation M/T Models.

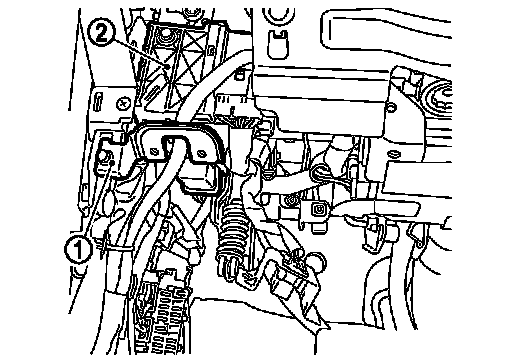

3.Remove bracket (1) and harness bracket (2).
4.Disconnect ASCD clutch switch and clutch interlock switch connectors and then remove clip of harness from clutch pedal.
5.Remove snap pin and clevis pin from clevis.
6.Remove ASCD clutch switch, clutch interlock switch, and pedal pad from clutch pedal.
7.Remove stopper rubbers and pedal stopper rubber from clutch pedal, using a suitable remover.
8.Remove clutch pedal from the vehicle.
9.Remove bushing from clutch pedal, using a suitable drift [Commercial service tool].

INSTALLATION

Note the following, and install in the reverse order of removal.
- Apply recommended grease to bushing.
- Apply recommended grease to clevis pin.
