Inspection After Removal

CLUTCH PEDAL

Inspection and Adjustment


INSPECTION AFTER REMOVAL

Check the following items and replace clutch pedal if necessary.

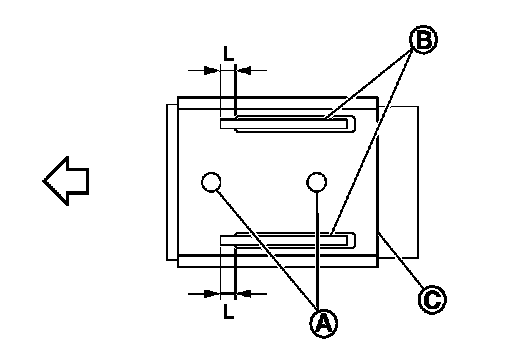

- Check clutch pedal upper rivets (A) for deformation.





- Check the lapping length "L" of sub-bracket (B) and slide plate (C).





- Check clutch pedal for bend, damage, and cracks on the welded parts.

INSPECTION AFTER INSTALLATION

Check the clutch pedal free play. Refer to "Inspection and Adjustment" Adjustments.

ADJUSTMENT AFTER INSTALLATION

Adjust the clutch interlock switch position. Refer to "Inspection and Adjustment" Adjustments.
