Inspection and Adjustment

CONTROL VALVE & TCM

Inspection and Adjustment


INSPECTION AFTER REMOVAL

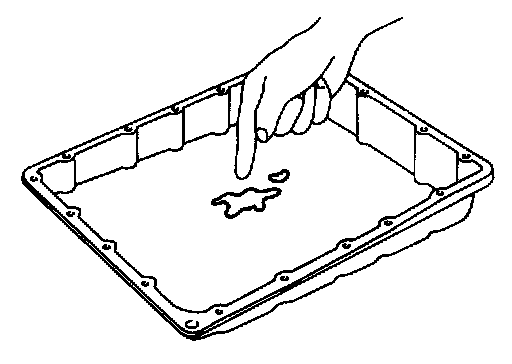

Check foreign materials in oil pan to help determine causes of malfunction. If the ATF is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up.
Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
-If frictional material is detected, perform A/T fluid cooler cleaning. Refer to "Cleaning" Cleaning
.

INSPECTION AFTER INSTALLATION

Check A/T fluid leakage. Refer to "Inspection" Inspection.

ADJUSTMENT AFTER INSTALLATION

Adjust A/T fluid level. Refer to "Adjustment" Adjustment.
