Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (TCM)

CONSULT Function

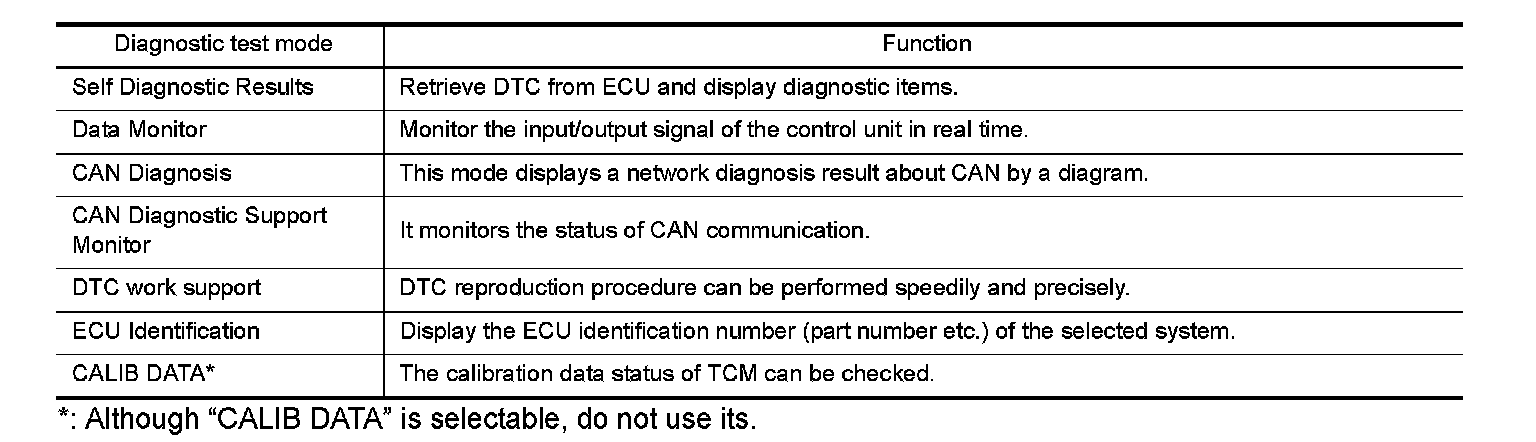

CONSULT APPLICATION ITEMS






*: Although "CALIB DATA" is selectable, do not use its.

SELF DIAGNOSTIC RESULTS

Refer to "DTC Index" Testing and Inspection.
IGN Counter
The IGN counter is indicated in Freeze frame data (FFD) and indicates the number of times that the ignition switch is turned ON after returning to the normal state from DTC.
- CAN malfunction
- The number is 0 when a malfunction is detected now.
- The number increases like 1 -> 2 -> 3...38 -> 39 after returning to the normal condition whenever ignition switch OFF -> ON.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
- Other than CAN malfunction
- The number is 0 when a malfunction is detected now.
- The number increases like 1 -> 2 -> 3...254 -> 255 after returning to the normal condition whenever ignition switch OFF -> ON.
- The number is fixed to 255 until the self-diagnosis results are erased if it is over 255.

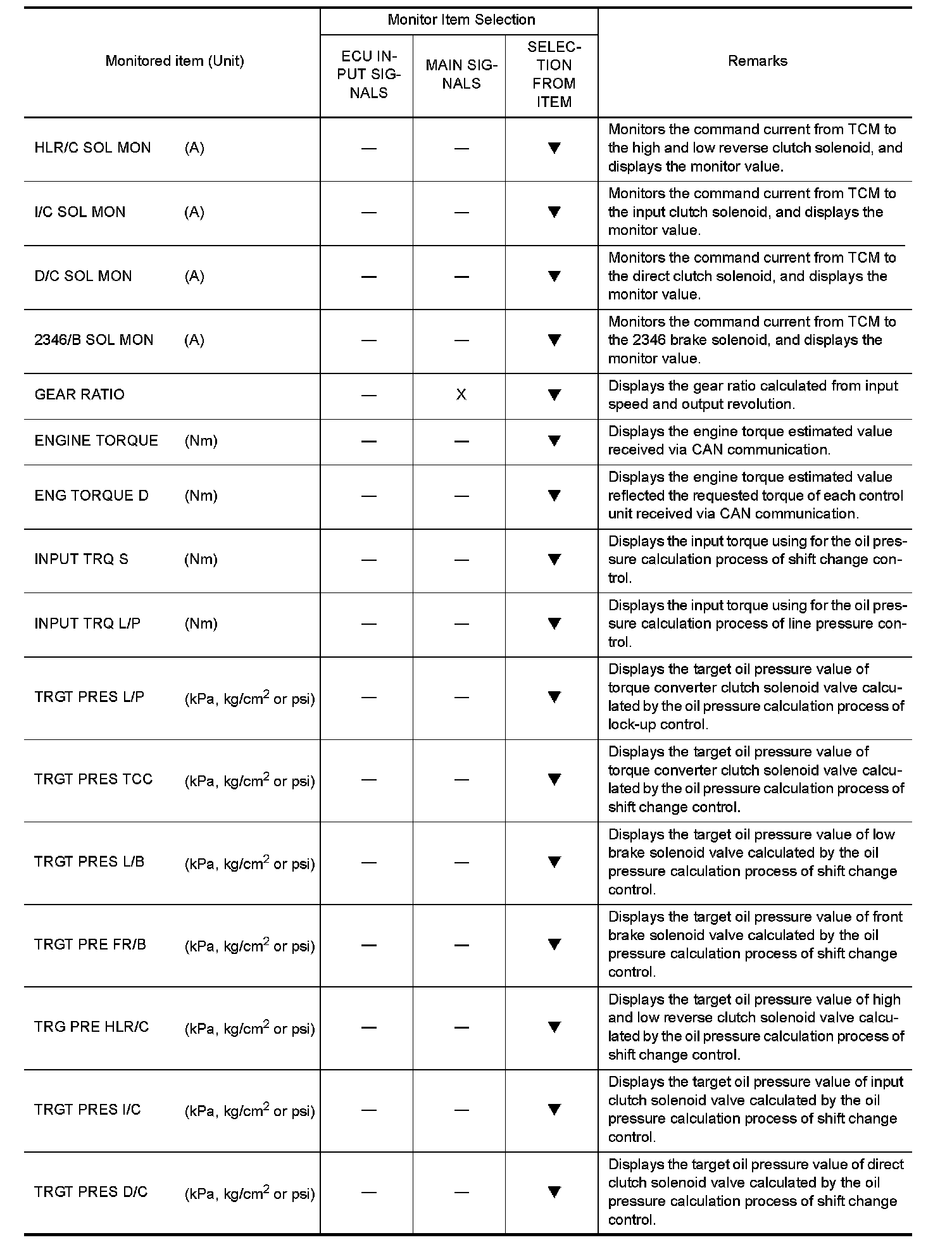

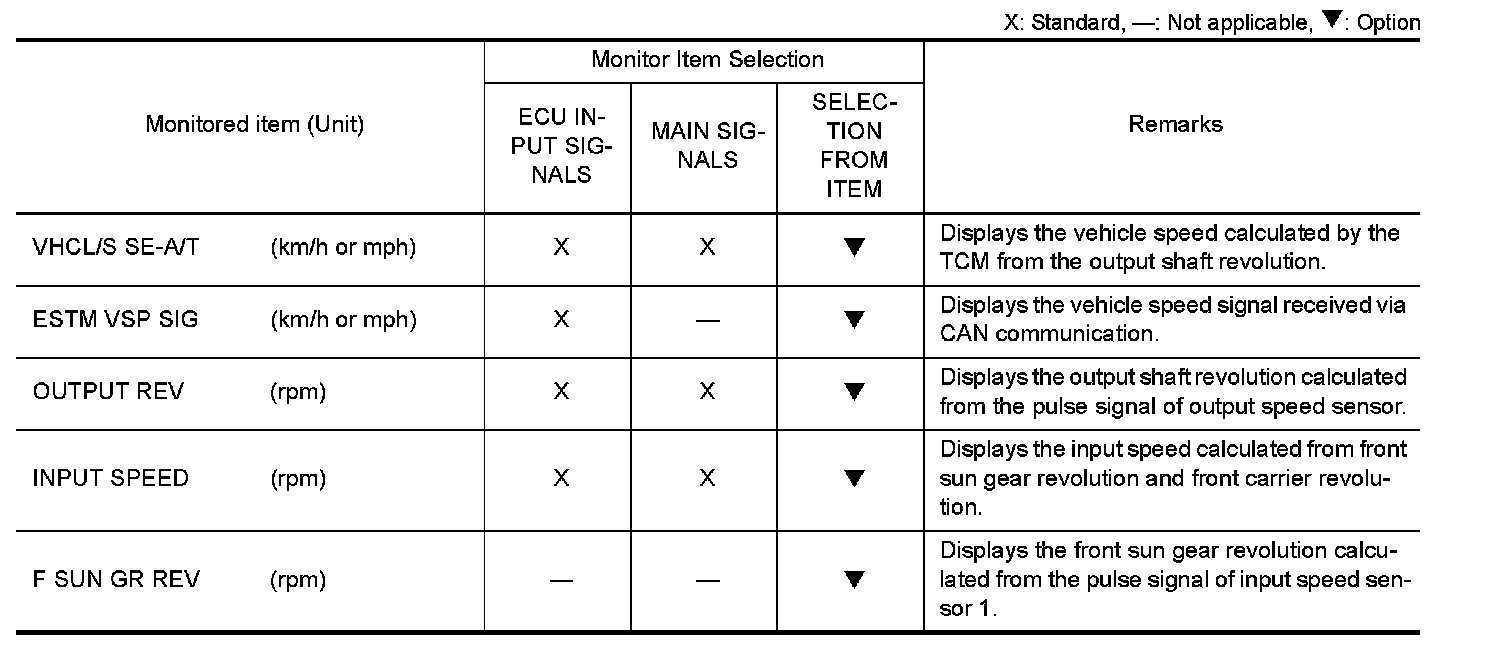

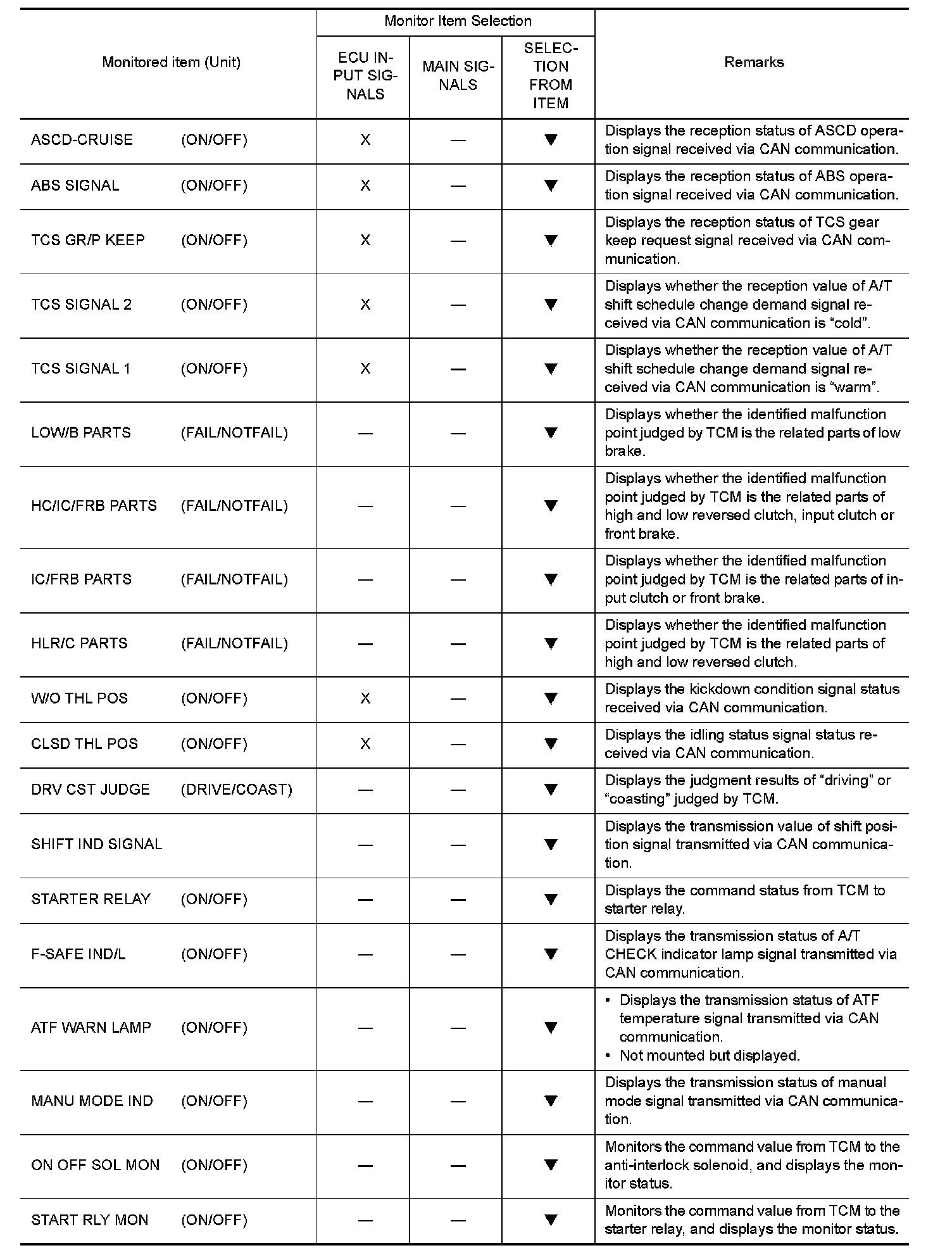

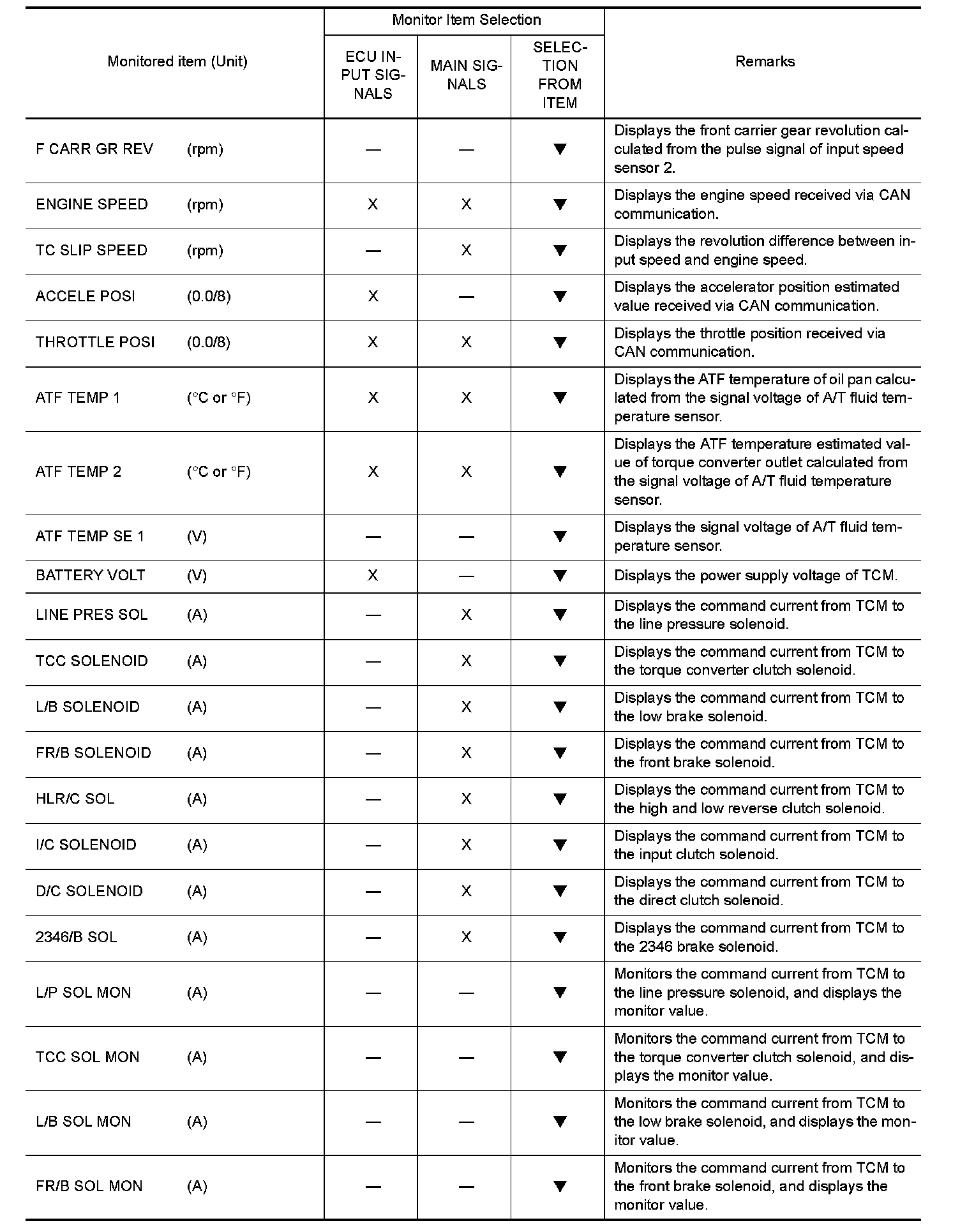

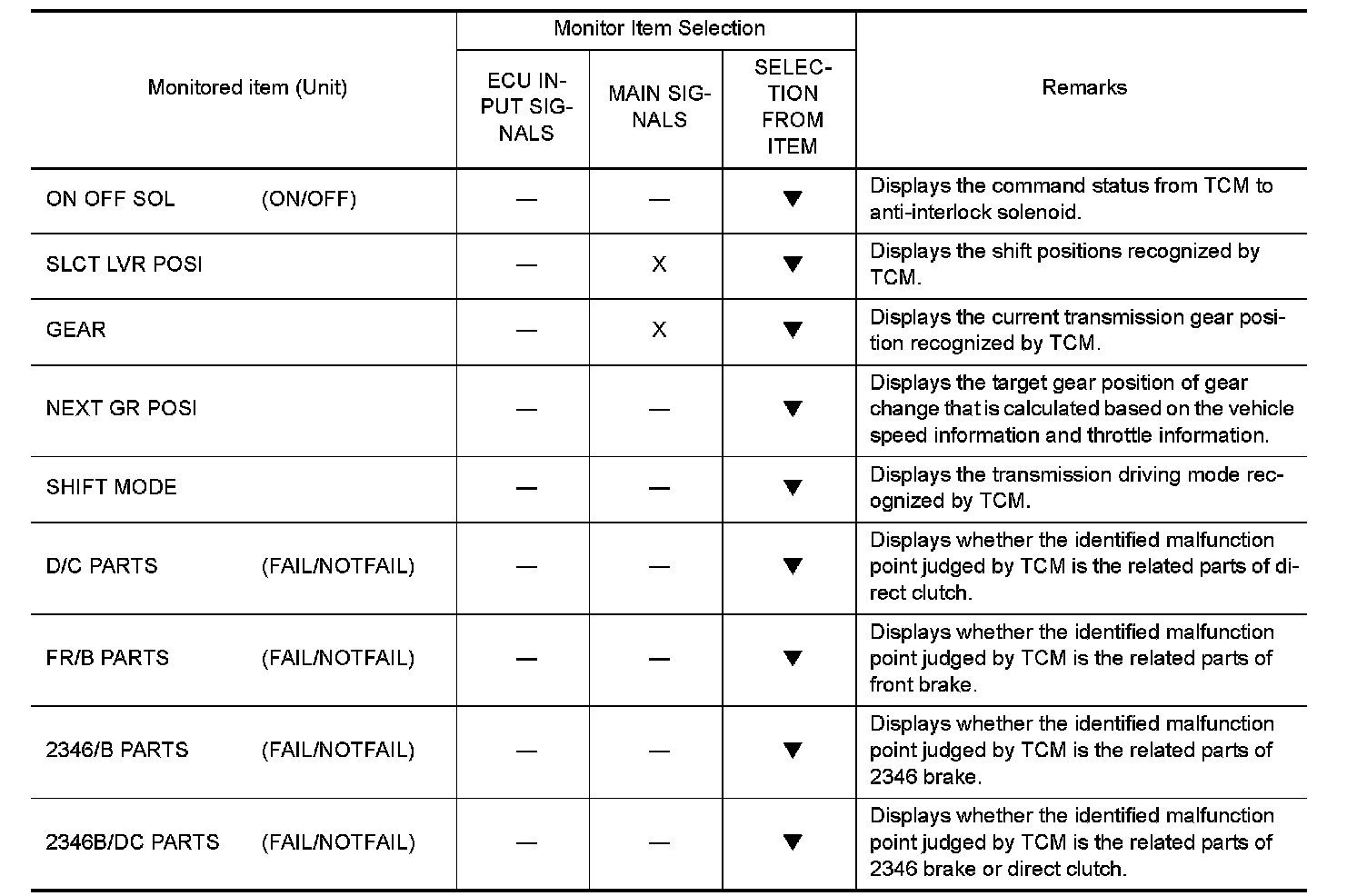

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
X: Standard, -: Not applicable, : Option































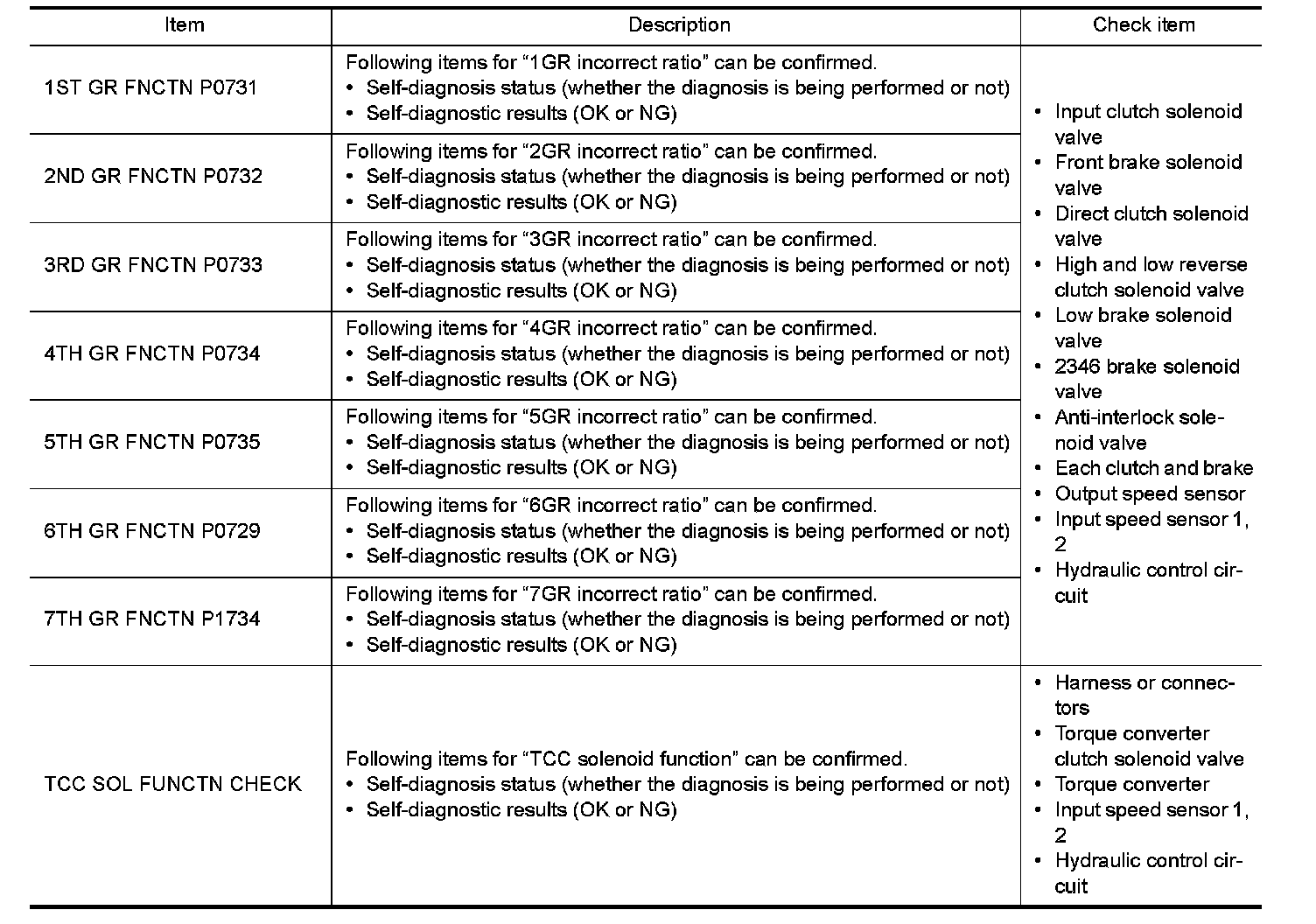

DTC WORK SUPPORT
