Selector Lever Position Indicator

SELECTOR LEVER POSITION INDICATOR

Description

Indicates selector lever position.


Component Function Check


1. CHECK SELECTOR LEVER POSITION INDICATOR (PART 1)

1.Turn ignition switch ON.
2.Check that each position indicator lamp of the selector lever position indicator turns on when shifting the selector lever from "P" to "M" position.
Is the inspection result normal?
YES- GO TO 2.
NO- Go to "Diagnosis Procedure" .

2. CHECK SELECTOR LEVER POSITION INDICATOR (PART 2)

Check that the night illumination of the selector lever position indicator turns on when setting the lighting switch in 1st position.
Is the inspection result normal?
YES- INSPECTION END
NO- Go to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK MALFUNCTIONING ITEM

Which item is abnormal?
Position indicator lamp- GO TO 2.
Illumination lamp- GO TO 9.

2. CHECK POWER SOURCE (PART 1)

1.Turn ignition switch OFF.
2.Disconnect A/T shift selector connector.
3.Turn ignition switch ON.

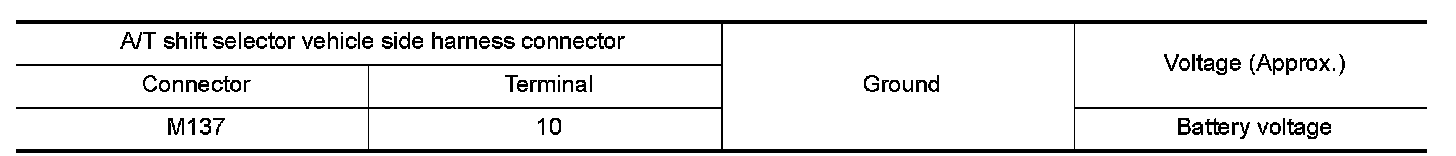

4.Check voltage between A/T shift selector vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 6.

3. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.

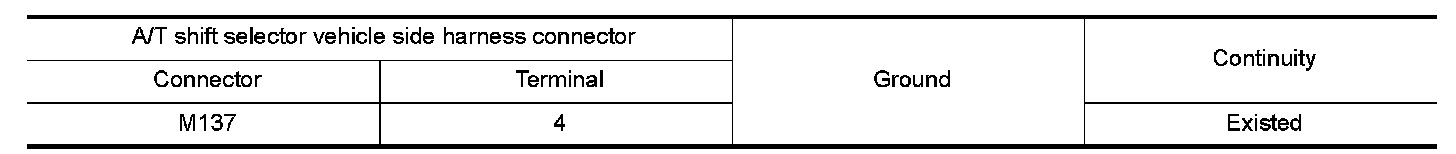

2.Check continuity between A/T shift selector vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace damaged parts.

4. CHECK SHIFT POSITION SWITCH

1.Disconnect selector lever position indicator side connector of shift position switch.

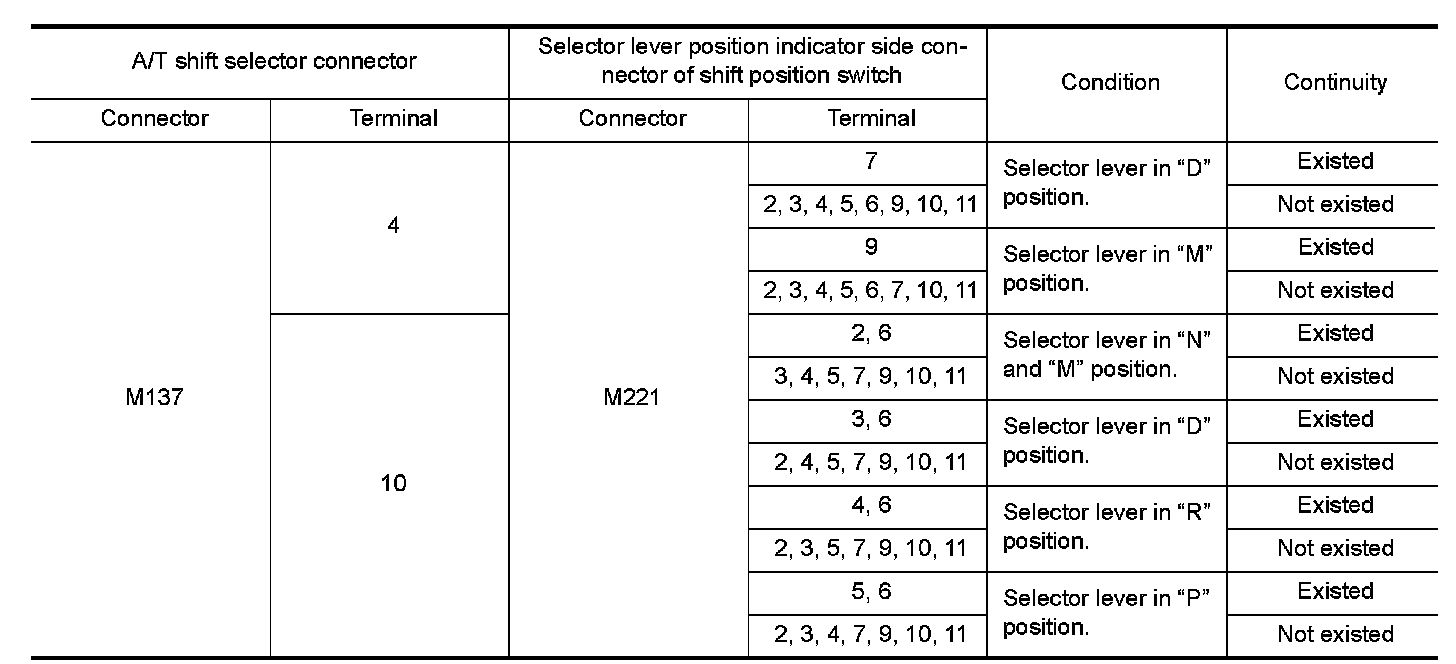

2.Check continuity between A/T shift selector connector terminals and selector lever position indicator side connector terminals of shift position switch.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace damaged parts.

5. CHECK SELECTOR LEVER POSITION INDICATOR

Check selector lever position indicator. Refer to "Component Inspection (Selector Lever Position Indicator)" .
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Replace damaged parts.

6. CHECK HARNESS BETWEEN A/T SHIFT SELECTOR AND BCM (PART 1)

1.Turn ignition switch OFF.
2.Disconnect BCM connector.

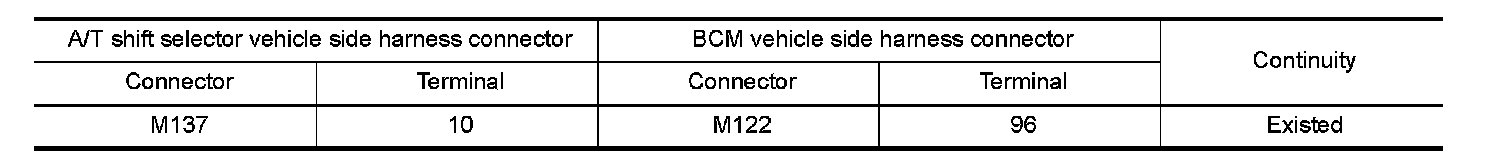

3.Check continuity between A/T shift selector vehicle side harness connector terminal and BCM vehicle side harness connector terminal.





Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace damaged parts.

7. CHECK HARNESS BETWEEN A/T SHIFT SELECTOR AND BCM (PART 2)

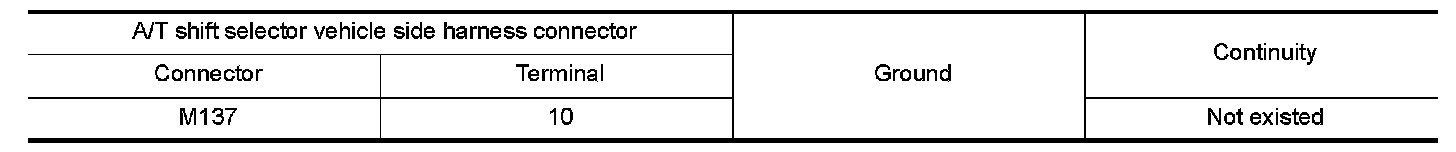

Check continuity between A/T shift selector vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 8.
NO- Repair or replace damaged parts.

8. CHECK BCM INPUT/OUTPUT SIGNAL

Check BCM input/output signal. Refer to "Reference Value" Pinout Values and Diagnostic Parameters.
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Repair or replace damaged parts.

9. CHECK POWER SOURCE (PART 2)

1.Turn ignition switch OFF.
2.Disconnect A/T shift selector connector.
3.Turn ignition switch ON.

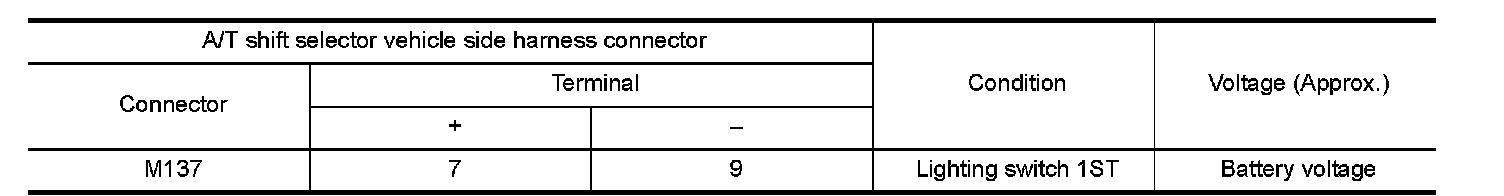

4.Check voltage between A/T shift selector vehicle side harness connector terminals.





Is the inspection result normal?
YES- GO TO 10.
NO- Check illumination circuit. Refer to "Wiring Diagram ILLUMINATION -" Illumination.

10. CHECK SHIFT POSITION SWITCH

1.Disconnect selector lever position indicator side connector of shift position switch.

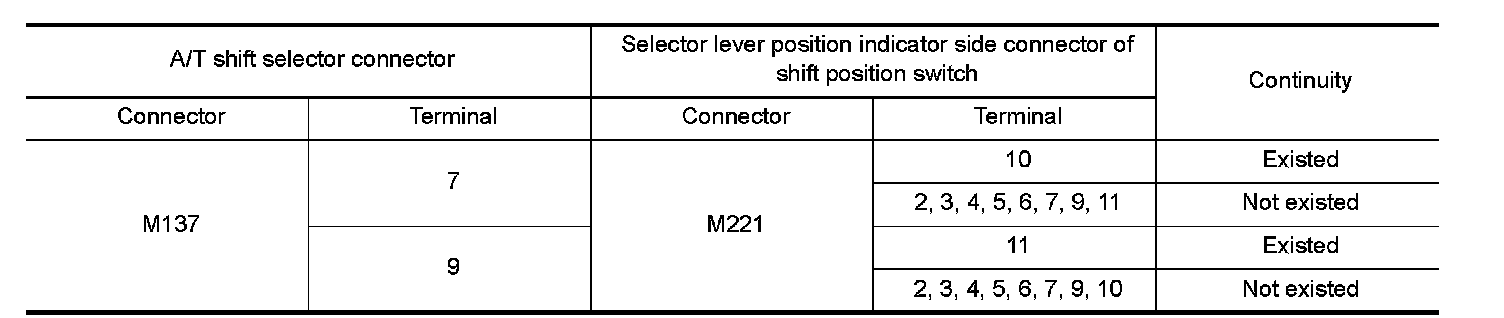

2.Check continuity between A/T shift selector connector terminals and selector lever position indicator side connector terminals of shift position switch.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace damaged parts.


Component Inspection (Selector Lever Position Indicator)


1. CHECK SELECTOR LEVER POSITION INDICATOR

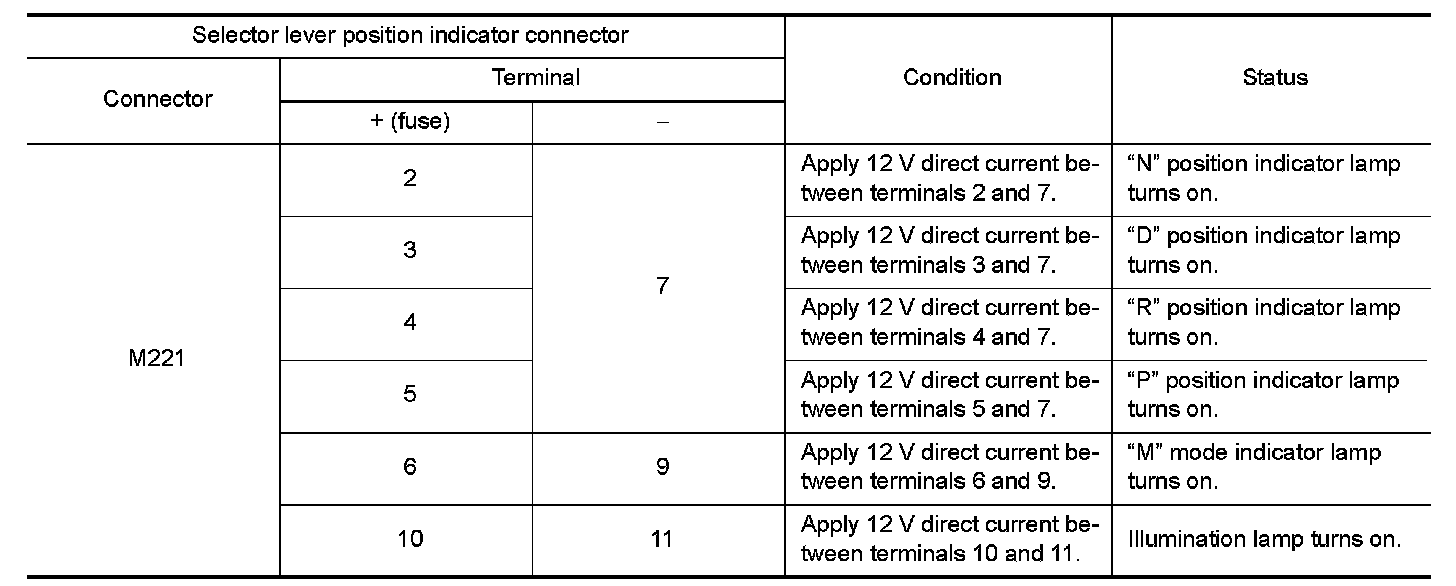

Check that selector lever position indicator lamps turn on.

CAUTION:
Connect the fuse between the terminals when applying the voltage.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace the selector lever position indicator. Refer to "Exploded View" Exploded View.
