Disassembly

UNDER DRIVE CARRIER, FRONT BRAKE HUB

Disassembly






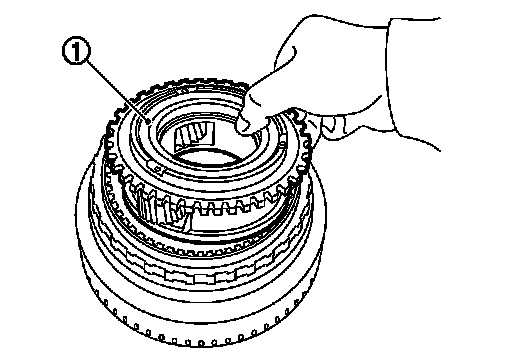

1.Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch front brake hub and under drive carrier assembly.
- Be careful not to damage snap ring.

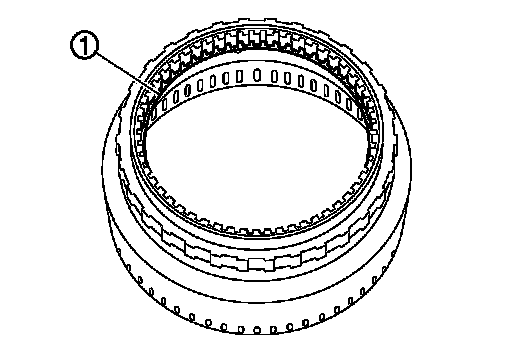

2.Remove under drive carrier assembly (1) from front brake hub.

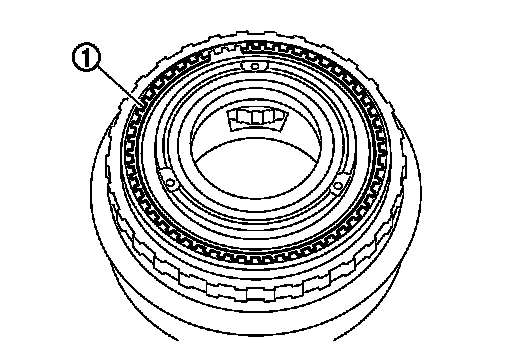

3.Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch front brake hub.
- Be careful not to damage snap ring.
