Assembly

UNDER DRIVE CARRIER, FRONT BRAKE HUB

Assembly

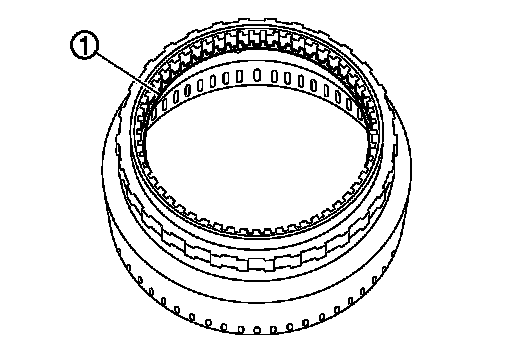

1.Install snap ring (1) to front brake hub.

CAUTION:
Be careful not to damage snap ring.

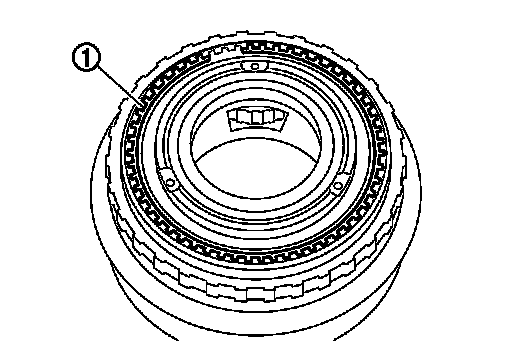

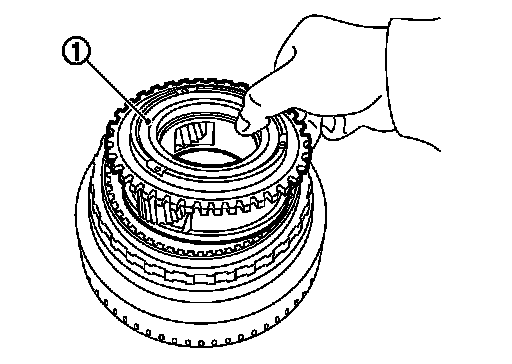

2.Install under drive carrier assembly (1) to front brake hub.





3.Install snap ring (1) to front brake hub using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch front brake hub.
- Be careful not to damage snap ring.
