Inspection

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

Inspection


INSPECTION AFTER DISASSEMBLY

2nd One-way Clutch

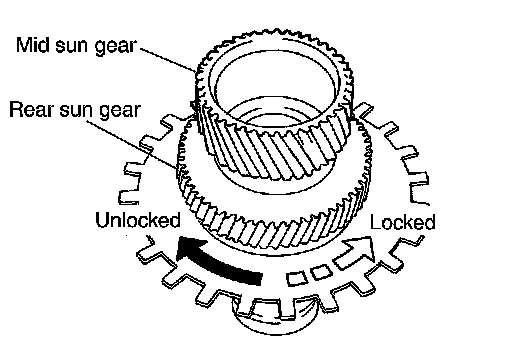

1.Hold mid sun gear and turn rear sun gear.
2.Check 2nd one-way clutch for correct locking and unlocking directions. If necessary, replace 2nd one-way clutch.
High and Low Reverse Clutch Hub Snap Ring, Rear Sun Gear Snap Ring
Check for deformation, fatigue or damage. If necessary, replace the snap ring.
2nd One-way Clutch
Check frictional surface for wear or damage. If necessary, replace the 2nd one-way clutch.
Mid Sun Gear
Check for deformation, fatigue or damage. If necessary, replace the mid sun gear.
Rear Sun Gear
Check for deformation, fatigue or damage. If necessary, replace the rear sun gear.
High and Low Reverse Clutch Hub
Check for deformation, fatigue or damage. If necessary, replace the high and low reverse clutch hub.
