Removal and Installation

PARKING COMPONENTS

Removal and Installation


REMOVAL

1.Drain ATF through drain plug.
2.Remove exhaust front tube and center muffler with power tool. Refer to "Exploded View" Exploded View.
3.Separate propeller shaft assembly. Refer to "Exploded View" Exploded View.
4.Remove control rod. Refer to "Exploded View" Exploded View.
5.Support A/T assembly with a transmission jack.

CAUTION:
When setting transmission jack, be careful not to allow it to collide against the drain plug.
6.Remove rear engine mounting member with power tool. Refer to "Exploded View" Exploded View.
7.Remove engine mounting insulator (rear). Refer to "Exploded View" Exploded View.

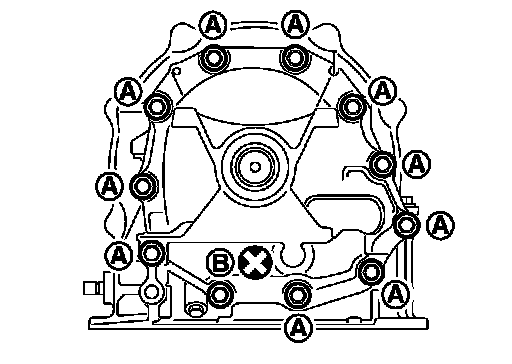

8.Remove tightening bolts for rear extension assembly and transmission case.

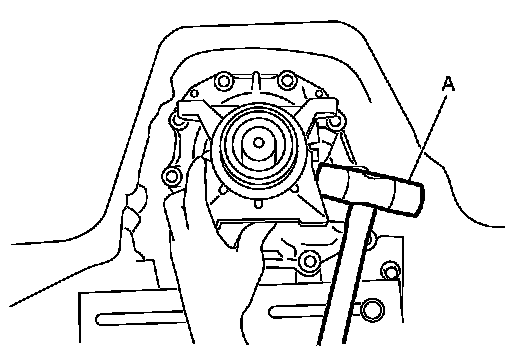

9.Tap rear extension assembly with a soft hammer (A).

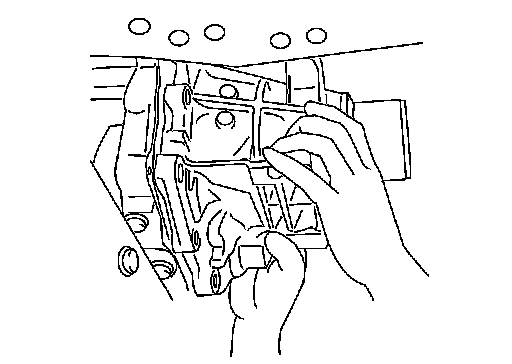

10.Remove rear extension assembly (with needle bearing) from transmission case.





11.Remove bearing race (1) from output shaft (2).

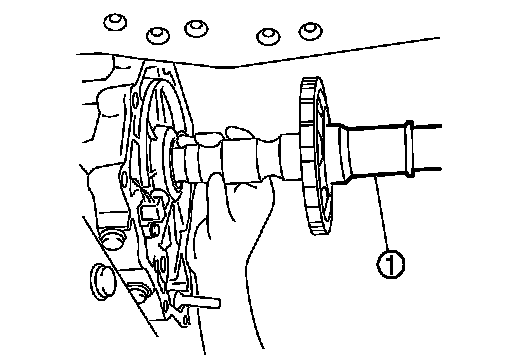

12.Remove output shaft (1) from transmission case by rotating left/
right.

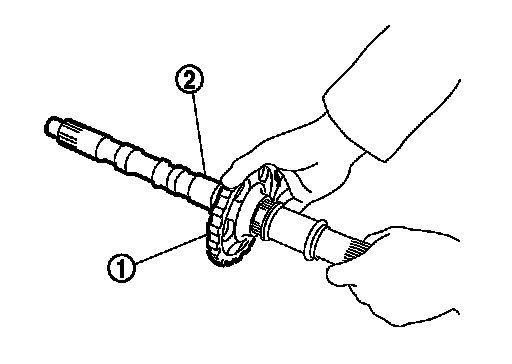

13.Remove parking gear (1) from output shaft (2).

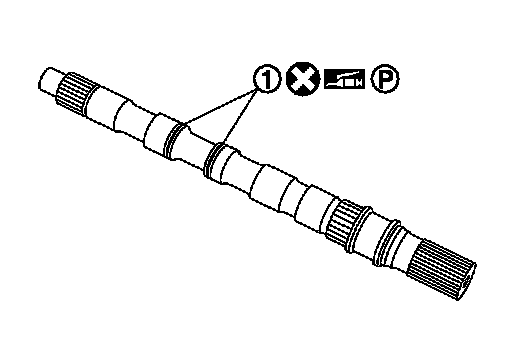

14.Remove seal rings (1) from output shaft.

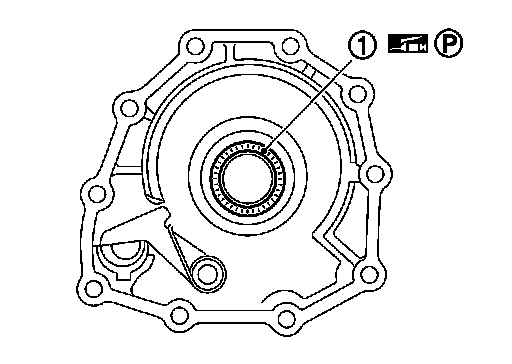

15.Remove needle bearing (1) from rear extension.

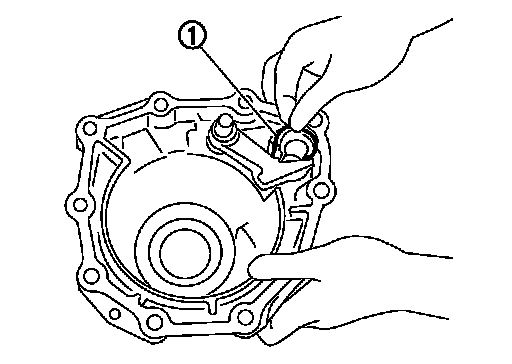

16.Remove parking actuator support (1) from rear extension.





17.Remove parking pawl (with return spring) (1) and pawl shaft (2)
from rear extension.

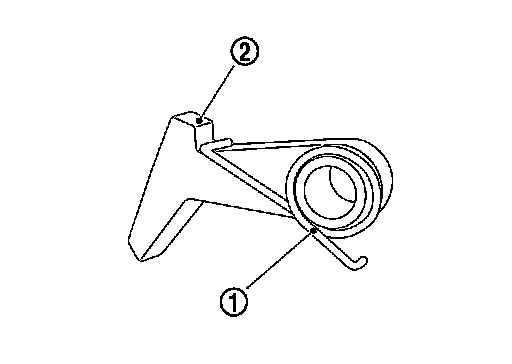

18.Remove return spring (1) from parking pawl (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:
- Never reuse seal rings and drain plug gasket.
- Apply petroleum jelly to needle bearing and seal rings.
- Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.
- Refer to the followings installing rear extension assembly.

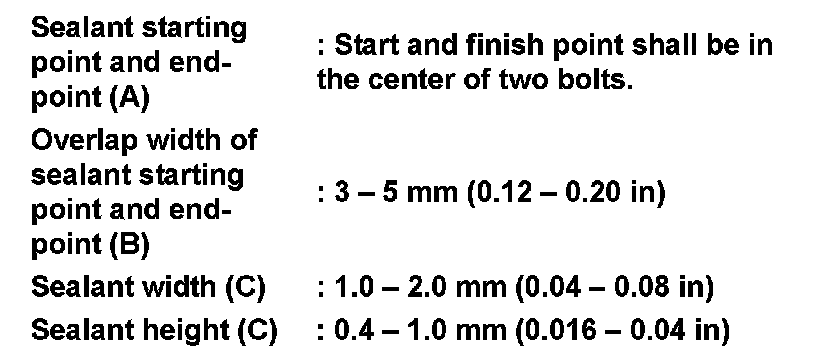

- Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "Recommended Chemical Products and Sealants" Recommended Chemical Products and Sealants.) to rear extension assembly as shown in the figure.









CAUTION:
Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

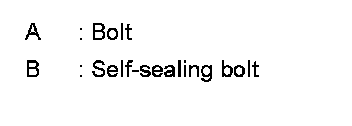

- Tighten rear extension assembly bolts to the specified torque.
