Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Testing and Inspection >> Scan Tool Testing and Procedures >> CONSULT Function and System Application

CONSULT Function and System Application

CONSULT/GST CHECKING SYSTEM

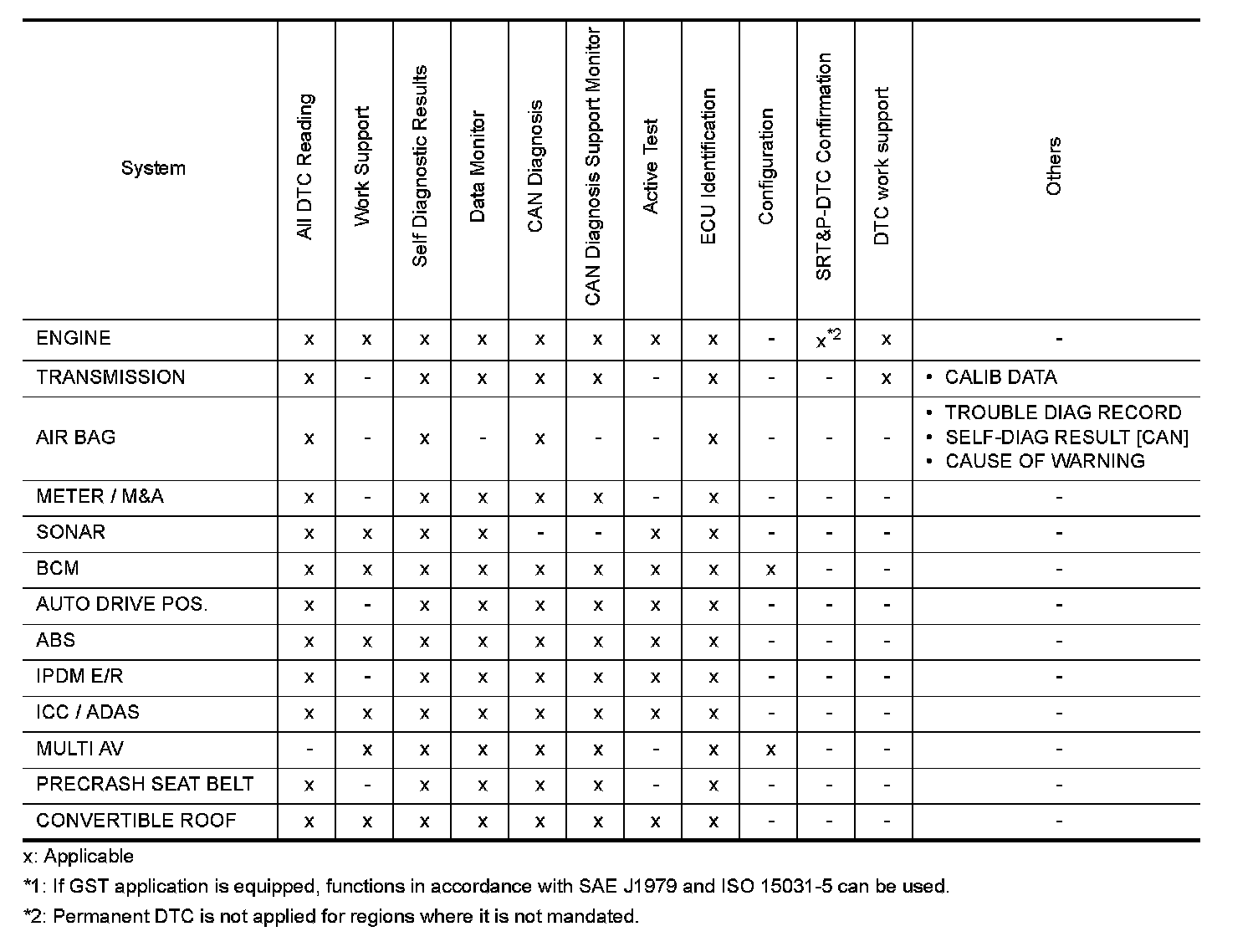

CONSULT Function and System Application*1

FUNCTION

SYSTEM APPLICATION
