G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Power Steering
>>
Power Steering Pump
>>
Service and Repair
>>
Removal and Replacement
>>

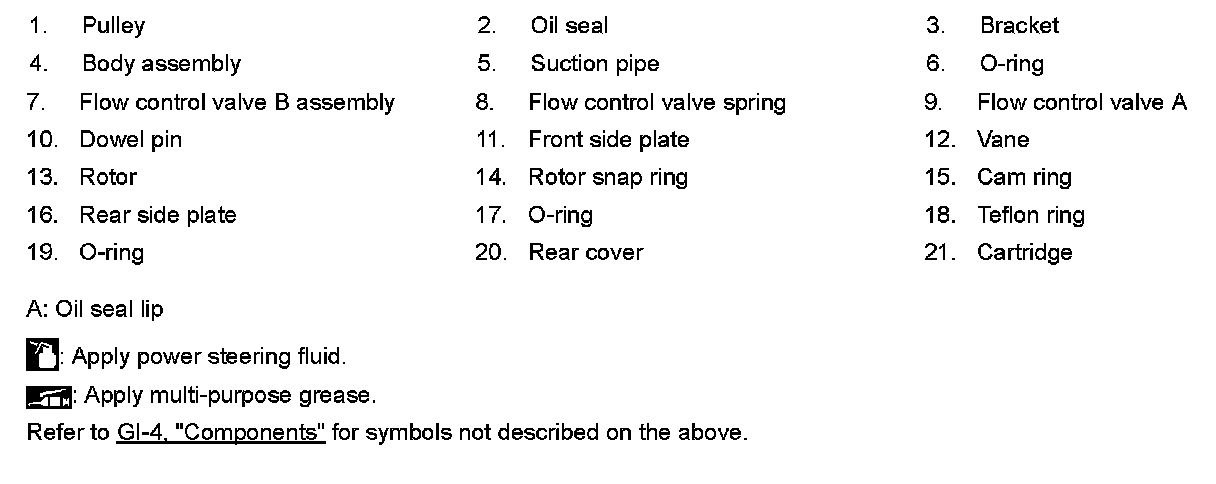

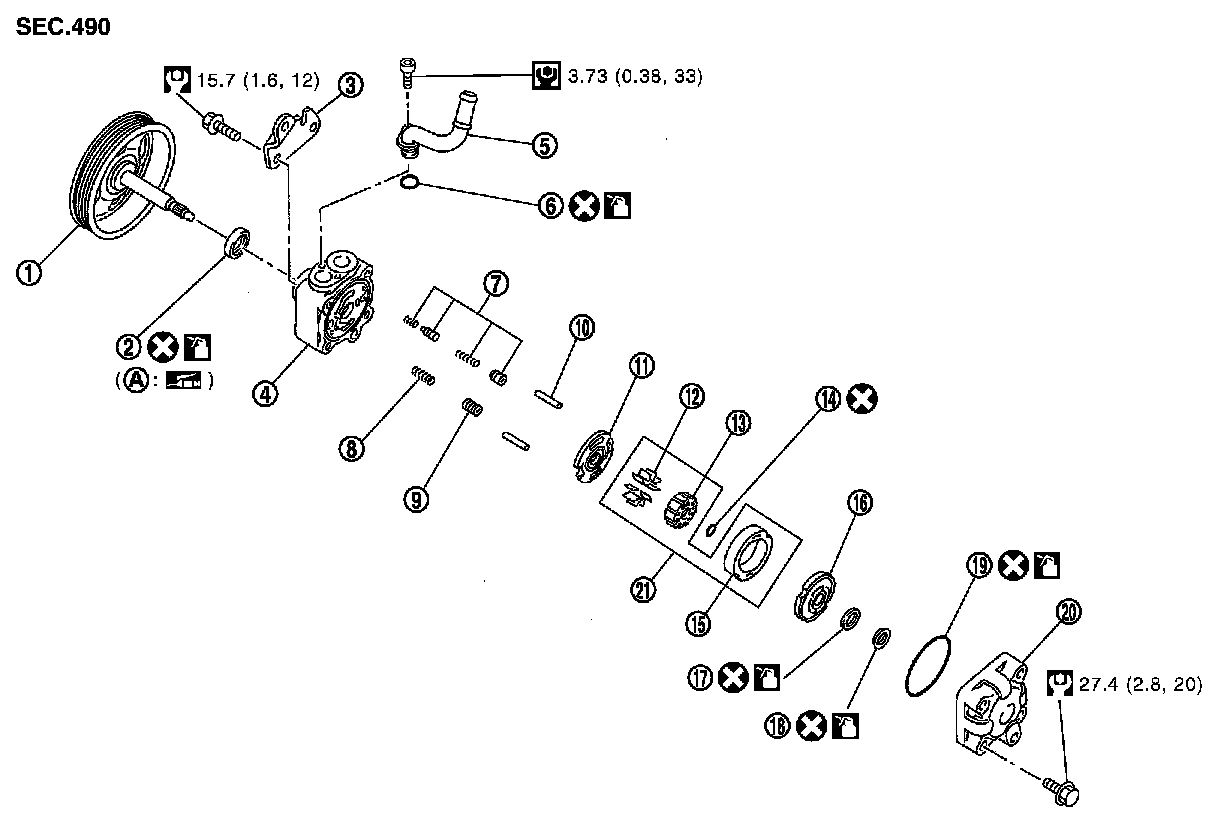

Exploded View Except For Sport Models
Exploded View Except For Sport Models
POWER STEERING OIL PUMP
EXCEPT FOR SPORT MODELS : Exploded View

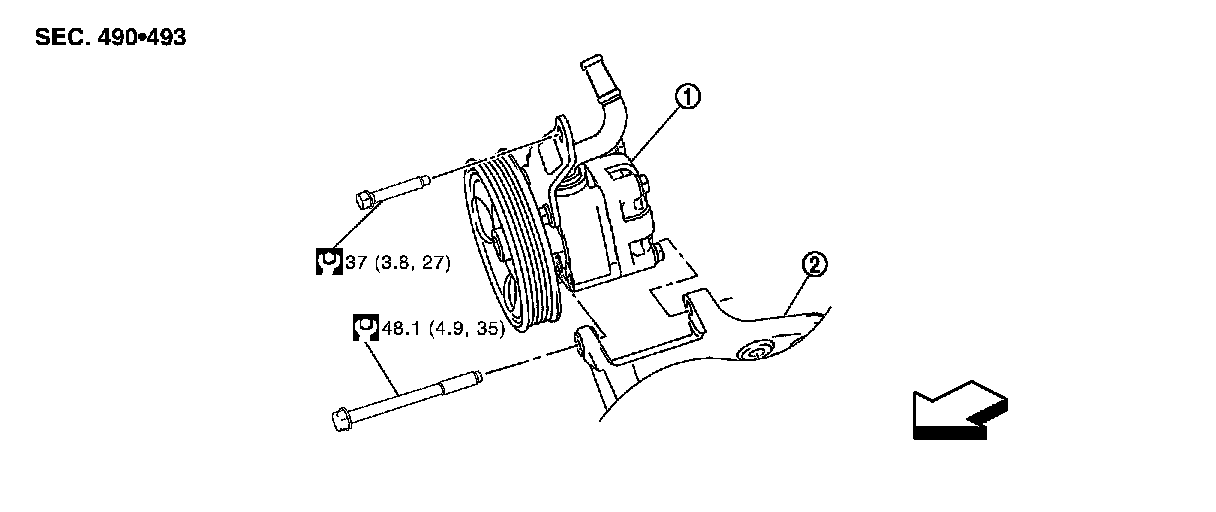

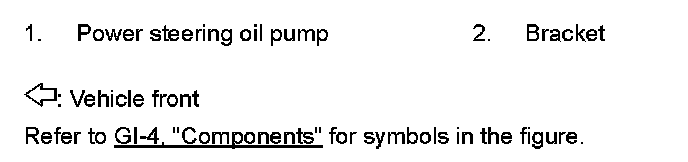

REMOVAL
DISASSEMBLY
