Rear Suspension

WHEEL ALIGNMENT

Adjustment


CAMBER

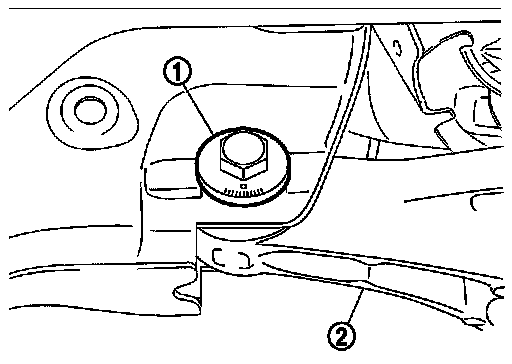

Adjust with adjusting bolt (1) in front lower link (2).
Camber: Refer to "Wheel Alignment" Wheel Alignment.

CAUTION:
After adjusting camber, be sure to check toe-in.
- If camber is not still within the specification, inspect and replace any damaged or worn suspension parts.

TOE-IN

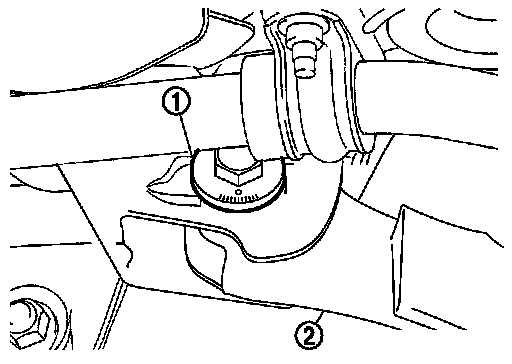

Adjust with adjusting bolt (1) in rear lower link (2).
Toe-In: Refer to "Wheel Alignment" Wheel Alignment.

CAUTION:
Be sure to adjust equally on right and left side with adjusting bolt.
- If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
- After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement" Special Repair Requirement.
