Removal and Installation

STARTER MOTOR

Removal and Installation


REMOVAL

1.Disconnect the battery cable from the negative terminal.
2.Remove engine undercover, using power tools.
3.Remove road wheel and tire (Front LH), using power tools.

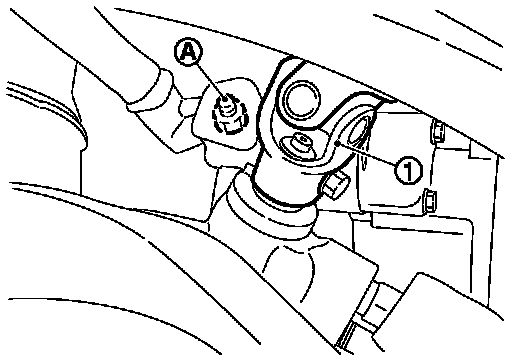

4.Disconnect steering lower joint (1), then remove it. Refer to ST22, "Exploded View".
5.Remove engine mounting insulator (LH) mounting nut (Lower).
Refer to "Exploded View" Exploded View.
6.Jack up the engine front side to create clearance for removing starter motor.
7.Remove "B" terminal nut (A).

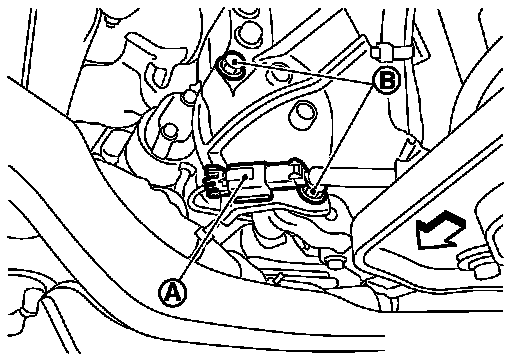

8.Disconnect "S" connector (A).





9.Remove starter motor mounting bolts (B), using power tools.

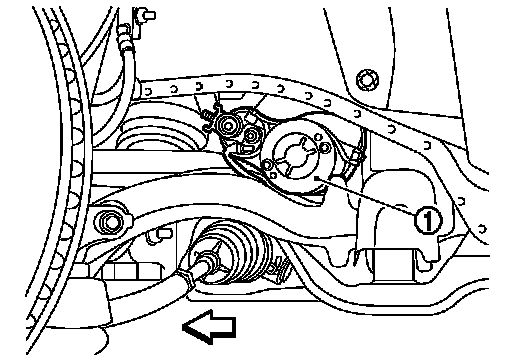

10.Remove starter motor (1) from the side of the vehicle.






INSTALLATION

Install in the reverse order of removal.

CAUTION:
Be sure to tighten "B" terminal nut carefully.
