Security Control System

PUSH BUTTON IGNITION SWITCH

Removal and Installation


REMOVAL

1.Remove the cluster lid A assembly. Refer to "A/T MODELS : Removal and Installation" Removal and Installation A/T Models (A/T models), "M/T MODELS : Removal and Installation" Removal and Installation M/T Models (M/T models).

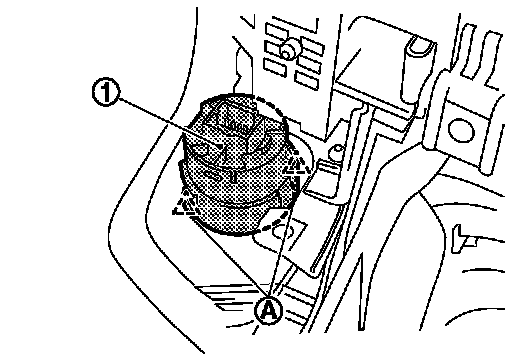

2.Remove the push-button ignition switch (1) from cluster lid A
assembly, and then remove pawl (A). Press push-button ignition switch (1) back to disengage from cluster lid A assembly.

INSTALLATION

Install in the reverse order of removal.
