Removal and Installation

CIGARETTE LIGHTER

Removal and Installation


REMOVAL

1.Remove console finisher assembly. Refer to "M/T MODELS : Exploded View" Exploded View.

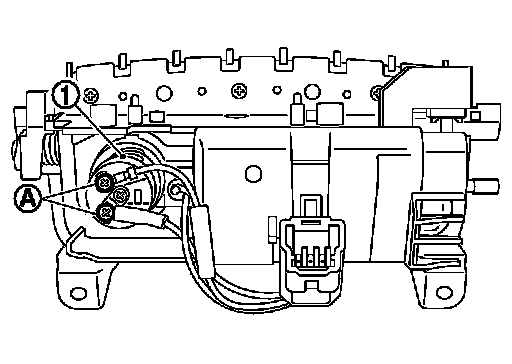

2.Remove the screws (A) from reverse side cigarette lighter socket (1).





3.Pull out cigarette lighter (1).

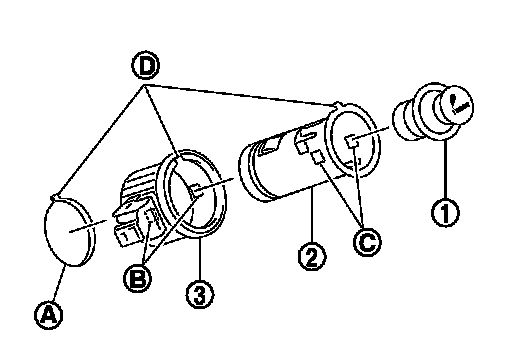

4.Pull out cigarette lighter socket (2) by pushing the cigarette lighter ring pawl (B) from the cigarette lighter socket hole (square) (C).
5.Remove cigarette lighter ring (3) from console finisher assembly while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:

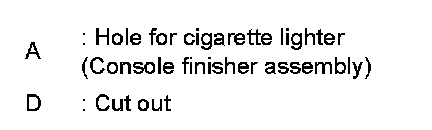

Align the cut outs of cigarette lighter socket, cigarette lighter ring and console finisher assembly.
