Removal and Installation

BATTERY

Removal and Installation


REMOVAL

1.Remove battery cover.
2.Remove cowl top cover (RH). Refer to "Exploded View" Exploded View.
3.Remove cover of battery positive terminal.

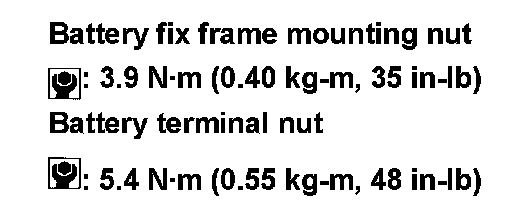

4.Loosen battery terminal nuts (1), and disconnect both battery cables from battery terminals.

CAUTION:
When disconnecting, disconnect the battery cable from the negative terminal first.
5.Remove battery fix frame mounting nuts (2) and battery fix frame (3).
6.Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
When connecting, connect the battery cable to the positive terminal first.





Reset electronic systems as necessary. Refer to "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection" Programming and Relearning.
