Exhaust Manifold

SERVICE DATA AND SPECIFICATIONS (SDS)

Exhaust Manifold


EXHAUST MANIFOLD

Unit: mm (in)

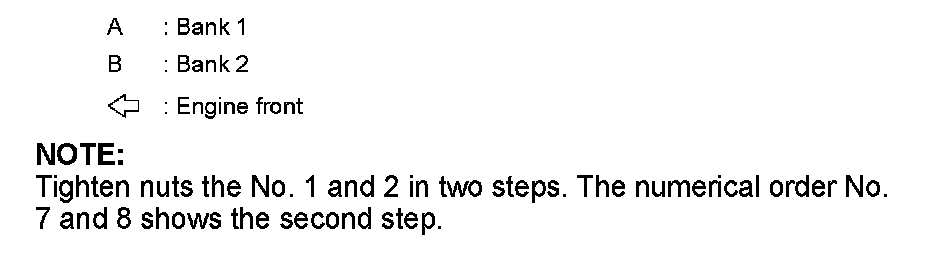

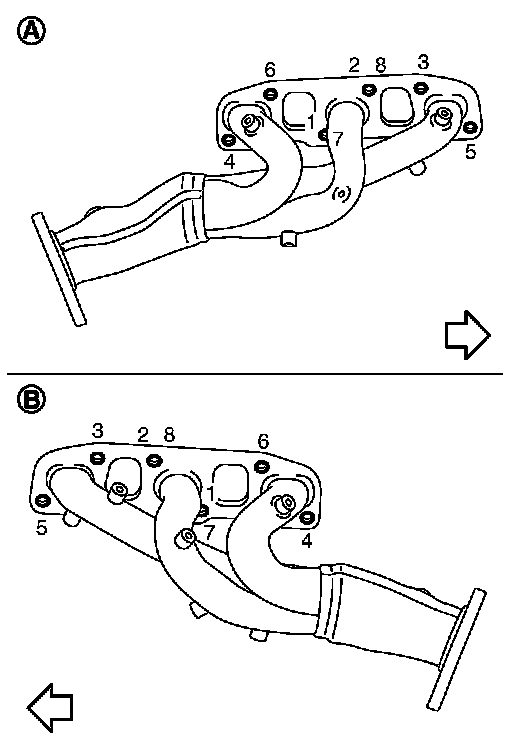

Install exhaust manifold and tighten mounting bolts in numerical order as shown in the figure.





Stud 14.7 Nm (1.5 kg-m, 11 ft-lb)
Nut 30.5 Nm (3.1 kg-m, 22 ft-lb)
