Backup Lamp Switch: Testing and Inspection

BACK-UP LAMP SWITCH

Component Inspection


1. CHECK BACK-UP LAMP SWITCH

1.Disconnect back-up lamp switch connector. Refer to "Removal and Installation" Removal and Installation.

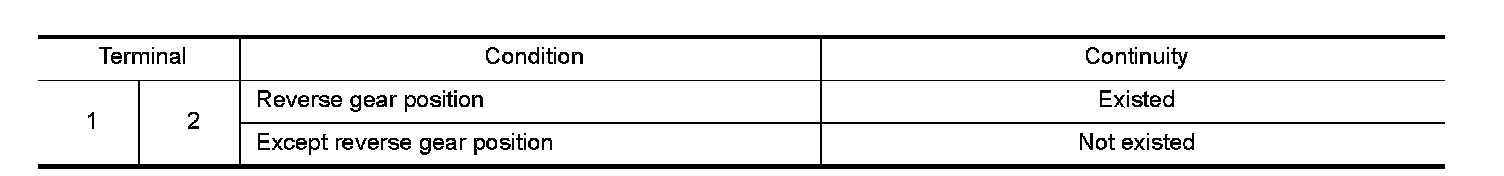

2.Check continuity between back-up lamp switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace back-up lamp switch. Refer to "Removal and Installation" Removal and Installation.
