Removal and Installation

EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR

Removal and Installation


REMOVAL

1.Remove radiator core support ornament. Refer to "Exploded View" Exploded View.
2.Disconnect exhaust gas/outside odor detecting sensor connector.

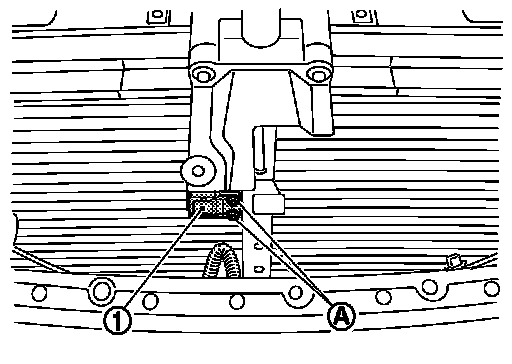

3.Remove mounting nuts (A), and then remove exhaust gas/outside odor detecting sensor.

INSTALLATION

Install in the reverse order of removal.
