Removal and Installation

BRAKE PEDAL STROKE SENSOR

Removal and Installation


REMOVAL

1.Remove the instrument panel lower cover LH. Refer to "A/T MODELS : Removal and Installation" Removal and Installation A/T Models
(A/T models) or "M/T MODELS : Removal and Installation" Removal and Installation M/T Models(M/T models).





2.Disconnect the brake pedal stroke sensor connector.

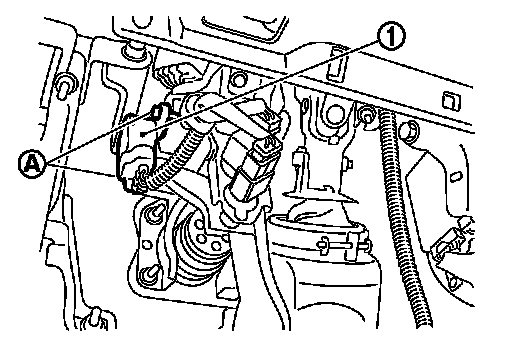

3.Remove the screws (A).
4.Remove the brake pedal stroke sensor (1).

INSTALLATION

Install in the reverse order of removal.
