Pre-Crash Seatbelt

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Diagnosis Description


DIAGNOSIS FUNCTION

When pre-crash seat belt control unit detects a malfunction, seat belt warning lamp blinks or turn ON and warns the user of the malfunction.
How to Read Seat Belt Warning Lamp
1.Turn the ignition switch from OFF to ON, and check that the seat belt warning lamp blinks.
2.Compare the seat belt warning lamp blinking pattern with the examples.

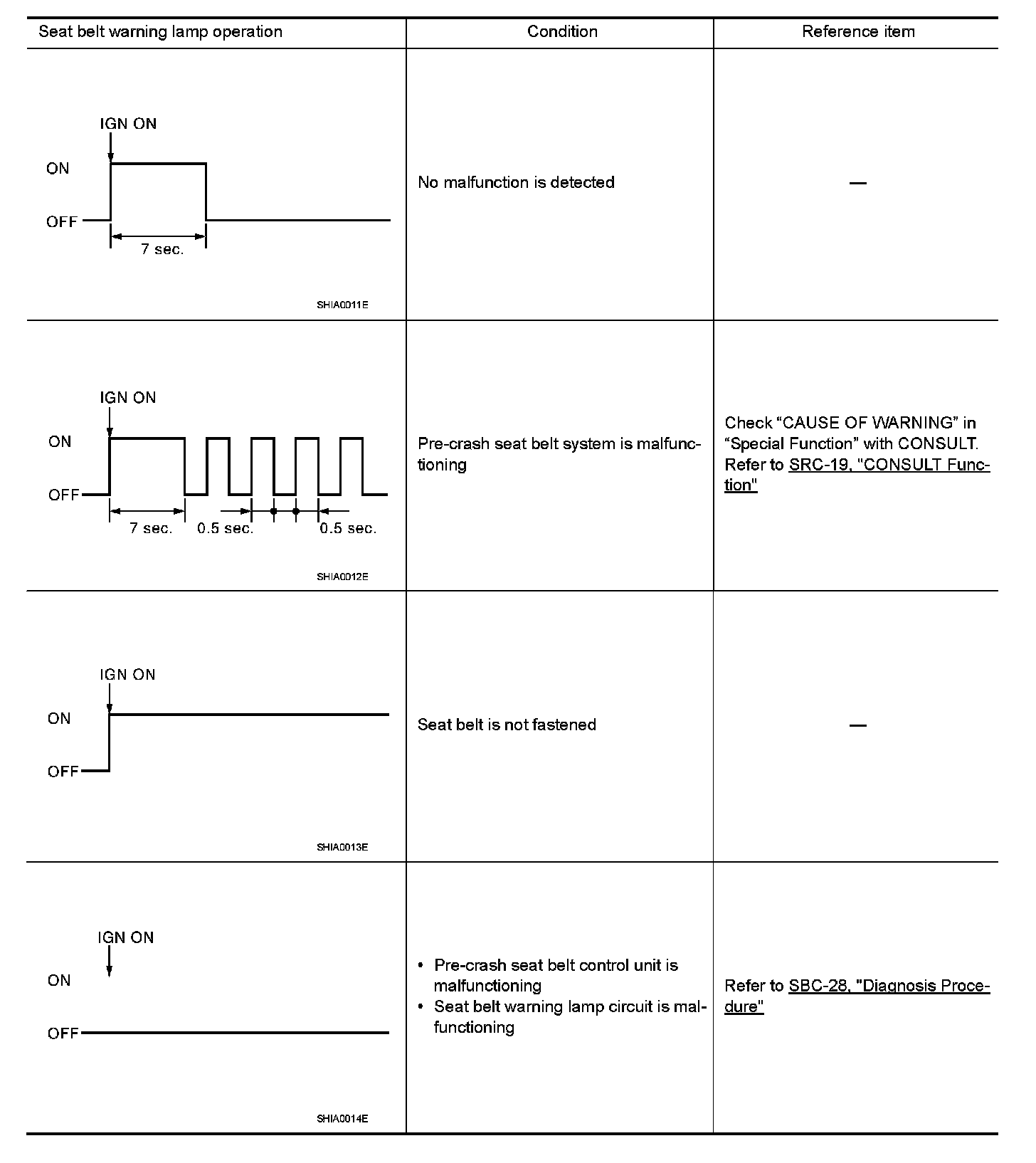

Seat Belt Warning Lamp Examples
