Pre-Crash Seat Belt

DIAGNOSIS SYSTEM (PRE-CRASH SEAT BELT)

CONSULT Function

Diagnosis for pre-crash seat belt system can be performed using CONSULT.

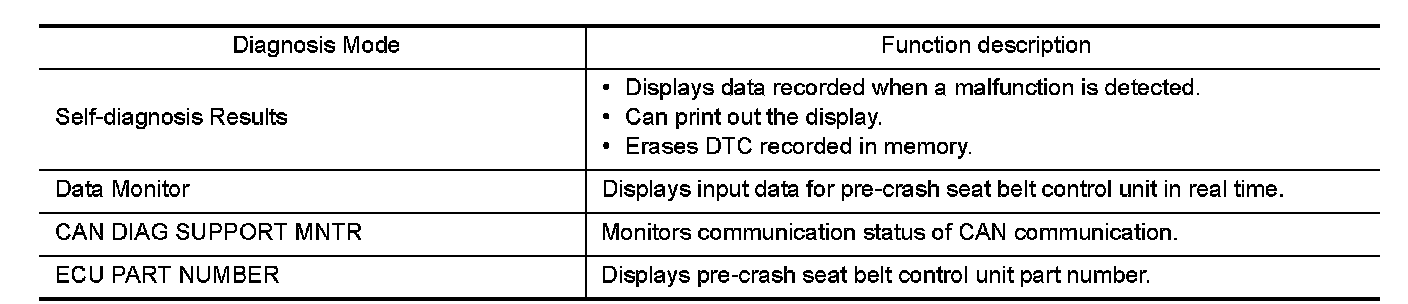

APPLICATION ITEM

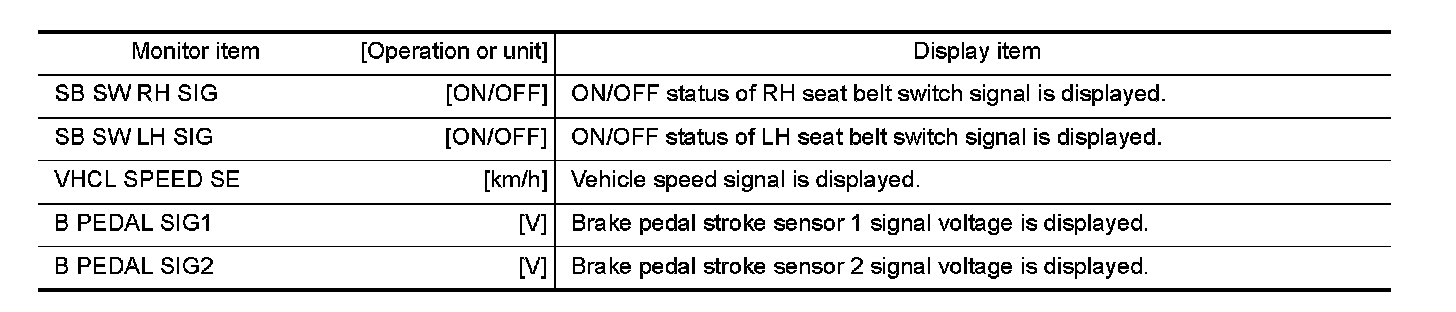

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
