Seat

SEAT BELT BUCKLE SWITCH

PASSENGER SIDE : Component Inspection


1. CHECK SEAT BELT BUCKLE SWITCH (PASSENGER SIDE)

1.Turn ignition switch OFF.
2.Disconnect seat belt buckle switch (passenger side) connector.

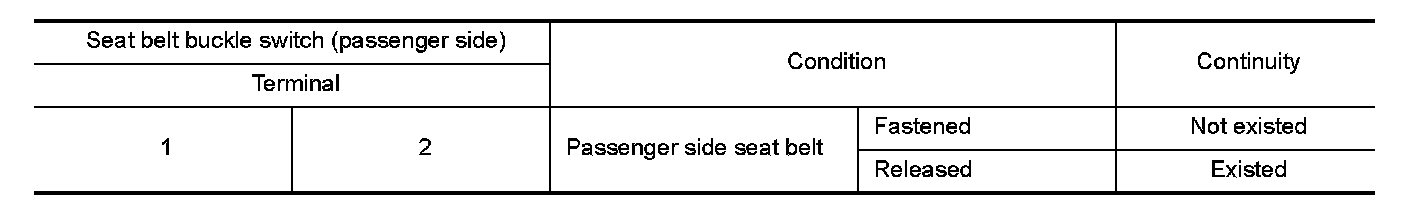

3.Check continuity between seat belt buckle switch (passenger side) terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace seat belt buckle switch (passenger side). Refer to "Exploded View" Exploded View.
