Pinout Values and Diagnostic Parameters

PRE-CRASH SEAT BELT CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

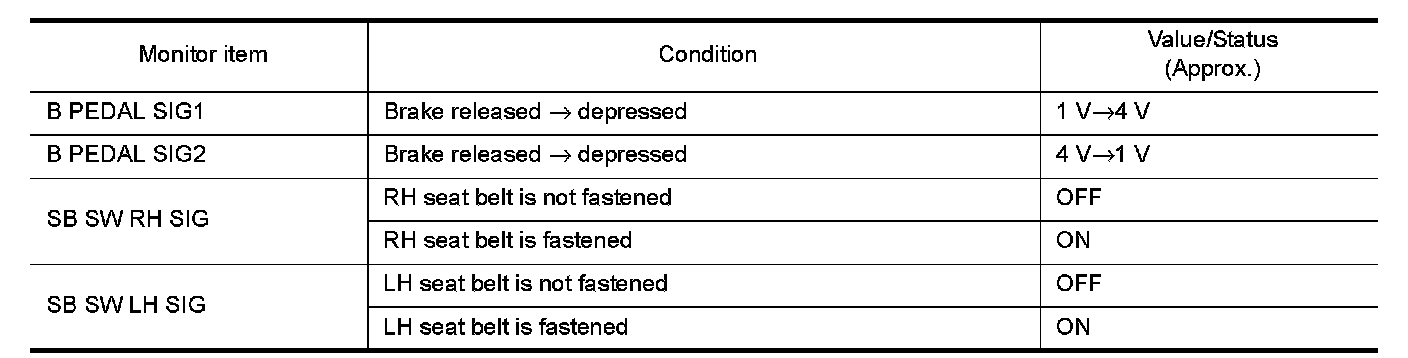

CONSULT MONITOR ITEM
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

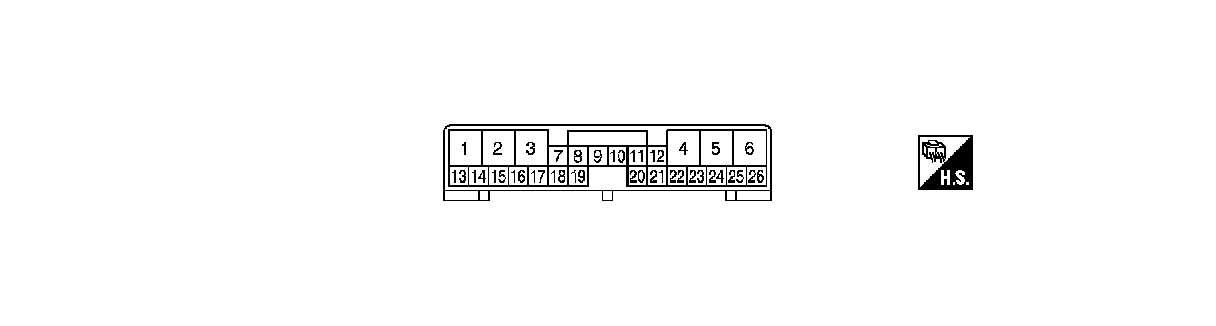

TERMINAL LAYOUT

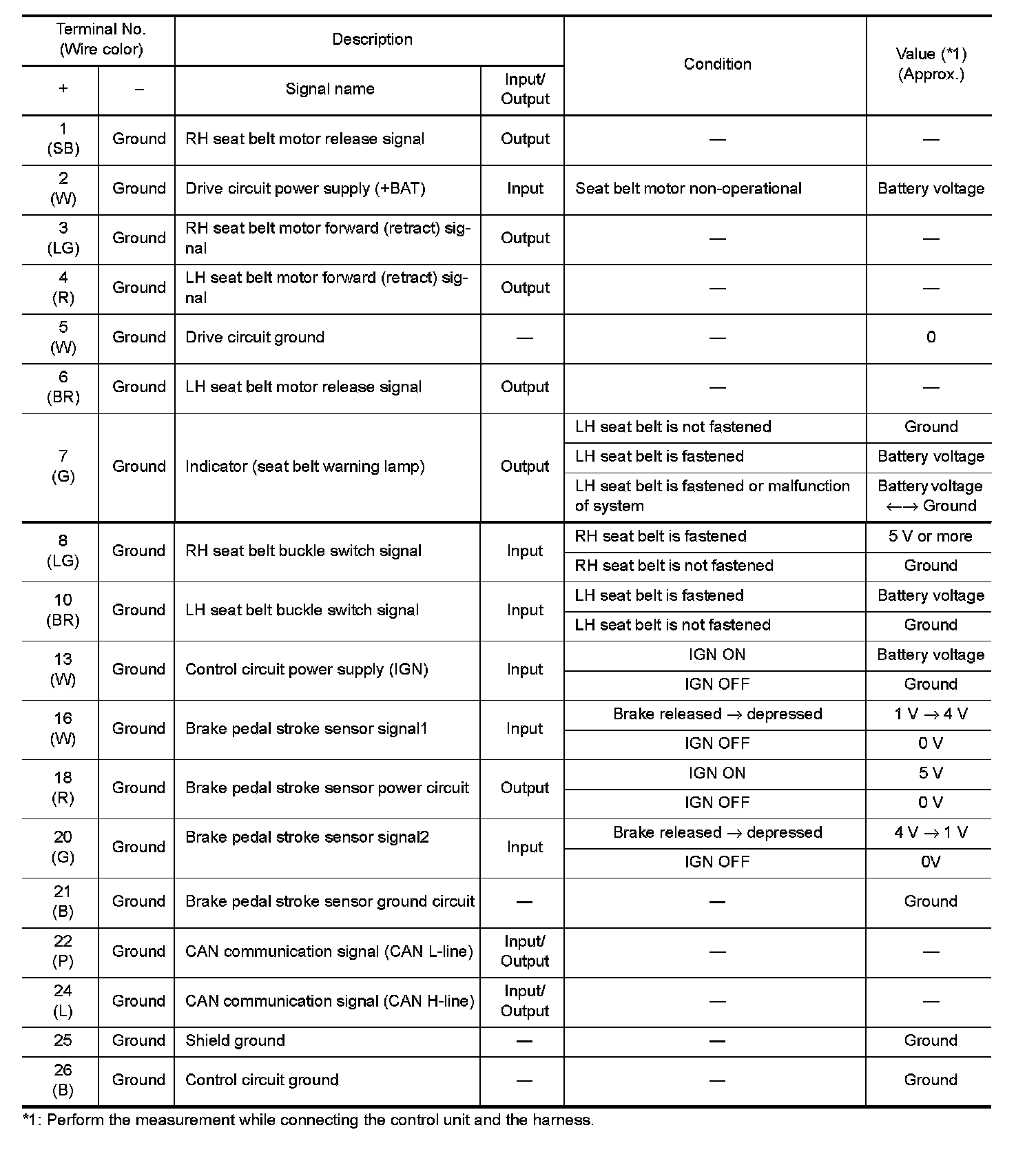

PHYSICAL VALUES
