Home
>>
Infiniti
>>
2013
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt Buckle
>>
Service and Repair
>>
Front Seat Belt
>>

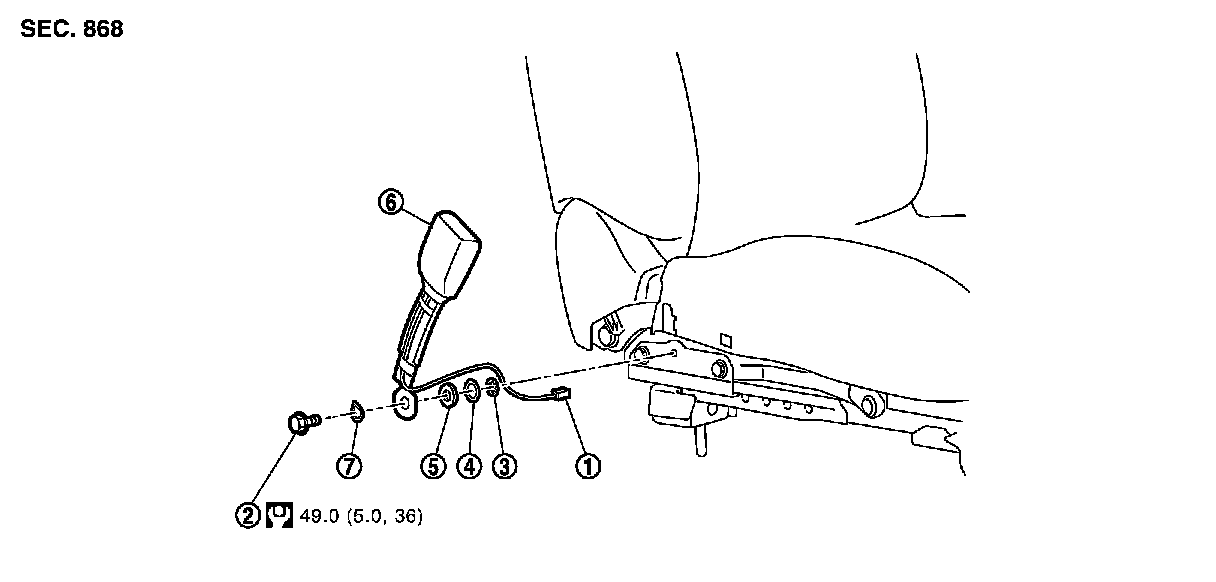

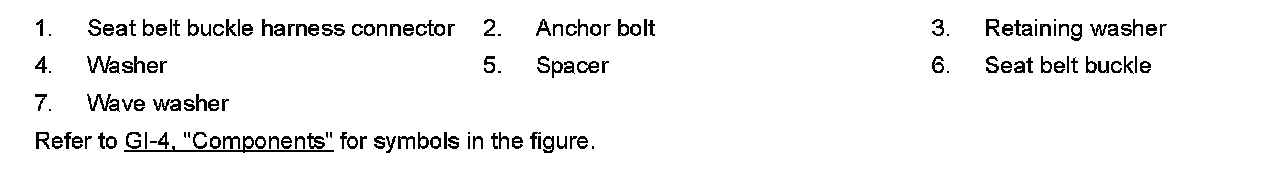

Exploded View
Exploded View
FRONT
SEAT BELT
SEAT BELT BUCKLE
: Exploded View
