When SRS Is Not Activated In A Collision

COLLISION DIAGNOSIS

FOR SIDE AND ROLLOVER COLLISION : When SRS is not activated in a collision


CAUTION:
Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE

1.Before performing any of the following steps, ensure that all vehicle body and structural repairs have been completed.

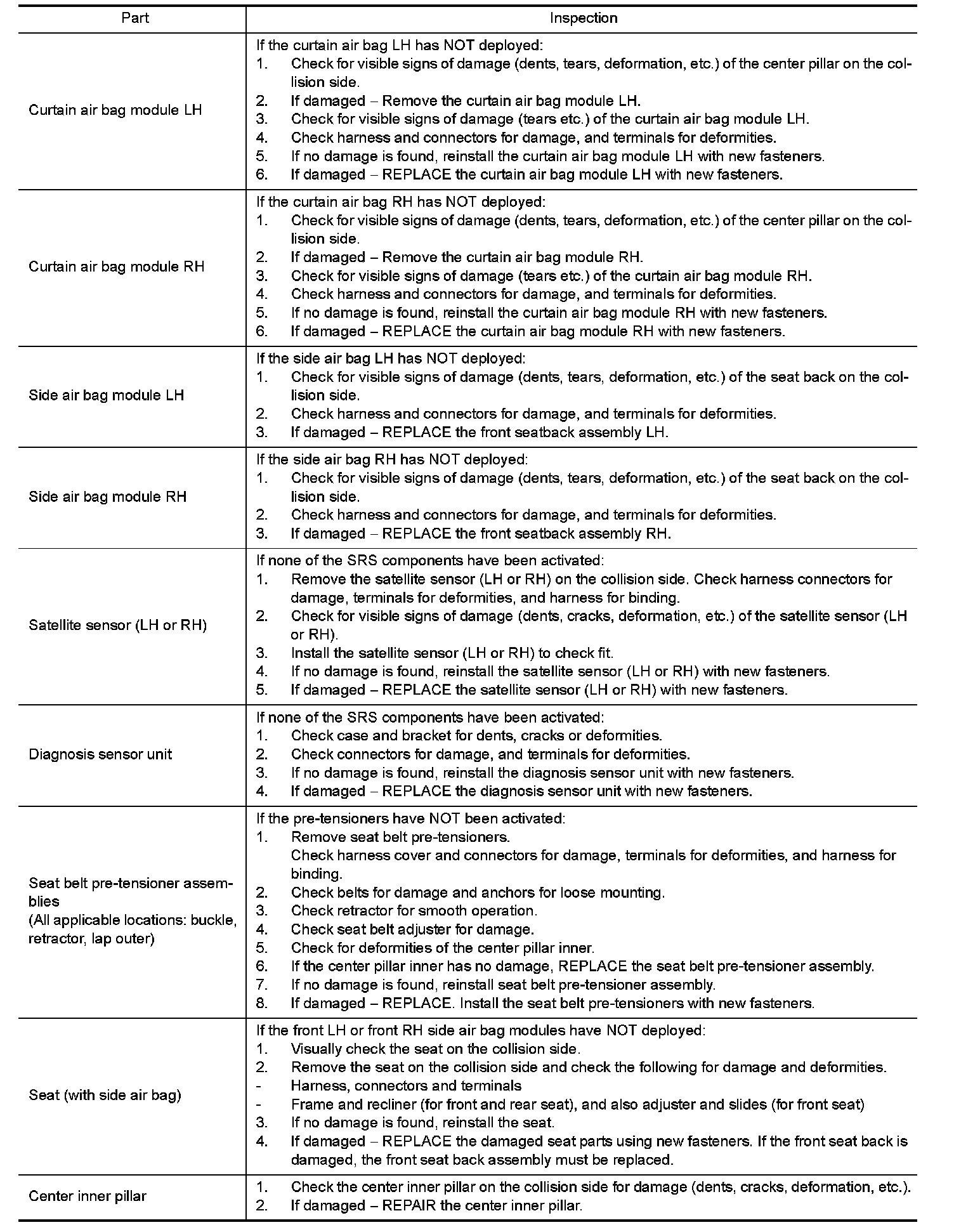

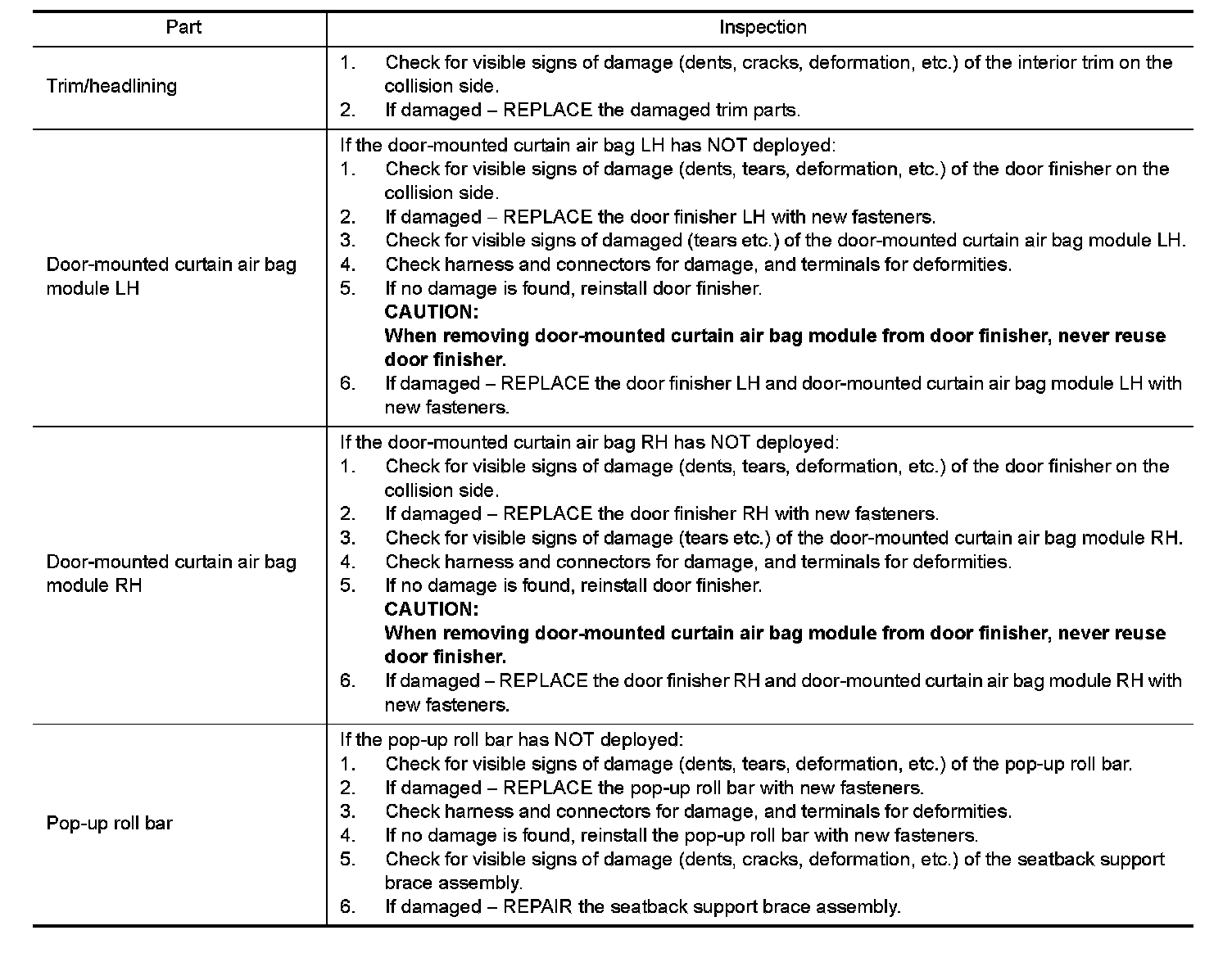

2.Check the SRS components and the related parts using the following table.
- If the front seat back assembly is damaged, the front seat back assembly must be replaced.
- If the door finisher assembly is damaged, the door finisher assembly and door-mounted curtain air bag module must be replaced.
3.Perform self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "CONSULT Function" Scan Tool Testing and Procedures or "Diagnosis with Air Bag Warning Lamp" Diagnosis With Air Bag Warning Lamp for details. Make sure entire SRS operates properly.
4.After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
"Diagnosis Description" Diagnosis Description.

SRS INSPECTION (FOR SIDE AND ROLLOVER COLLISION)
