Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (AIR BAG)

CONSULT Function


APPLICATION ITEM

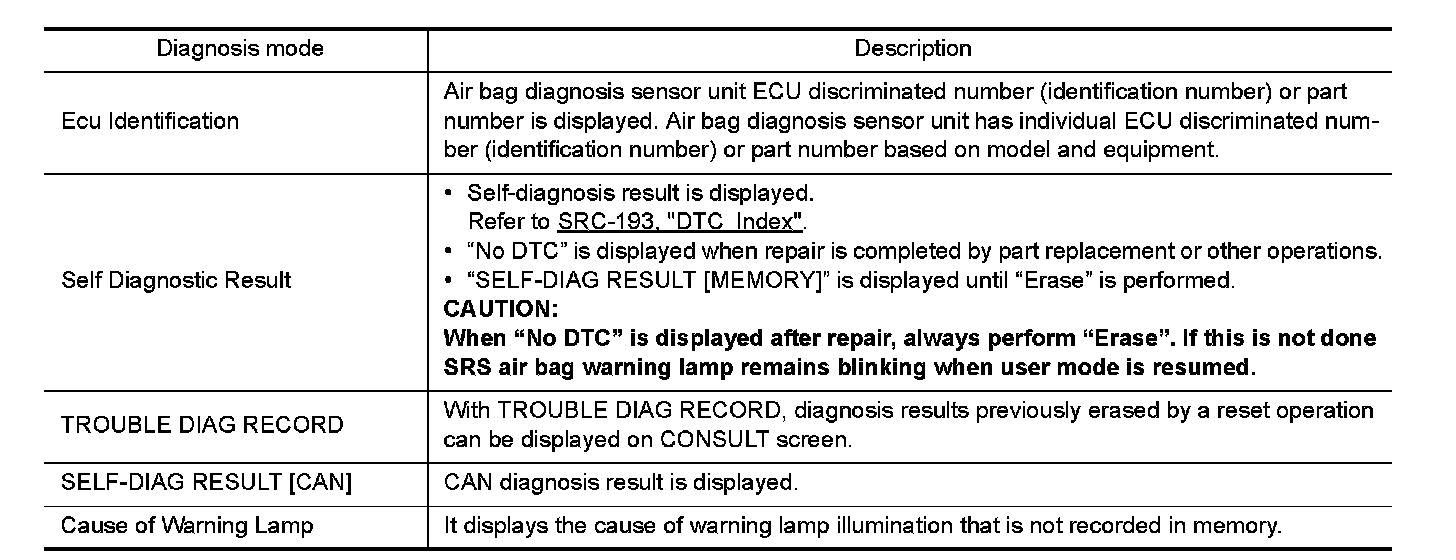

CONSULT performs the following functions.

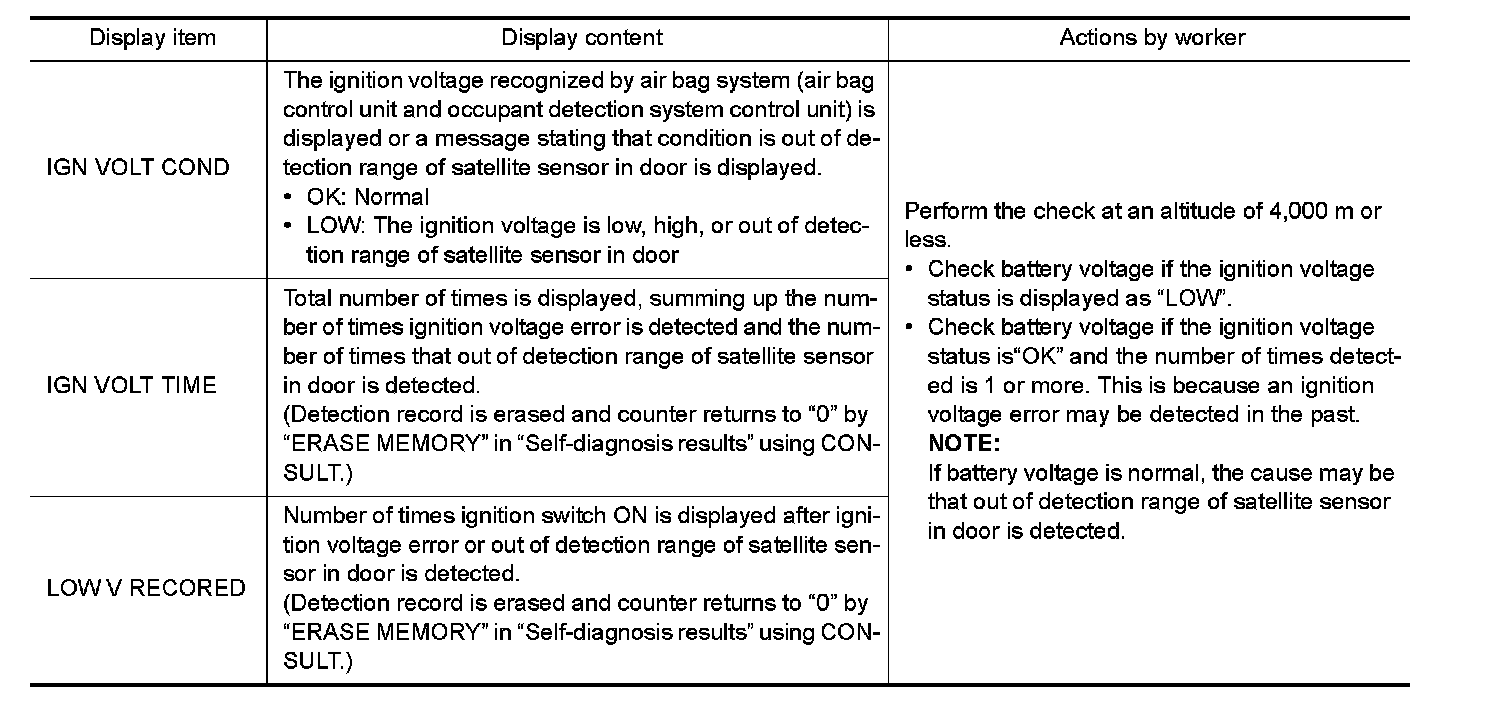

CAUSE OF WARNING LAMP

The SRS air bag warning lamp blinks when the ignition voltage is a voltage value (9V or less) at which the
SRS air bag cannot operate normally.After blinking, if the ignition voltage returns to normal, SRS air bag warning lamp turns OFF.DTC memory is not performed while the abnormal ignition voltage is detected.The mode cannot be switched to trouble diagnosis mode when the ignition switch is operated."No DTC" is displayed when checking "Self-diagnosis result" using CONSULT.
NOTE:
- SRS air bag warning may blink when the condition is out of detection area* of the satellite sensor in door.
The system is normal if SRS air bag warning lamp turns OFF after the condition returns within detection area of the satellite sensor in door.
- *: Pressure inside of door is excessively low and air bag system cannot be operated normally (example: altitude is approximately 4,000 m or more).
