Power Distribution Relay: Description and Operation

STANDARDIZED RELAY

Description

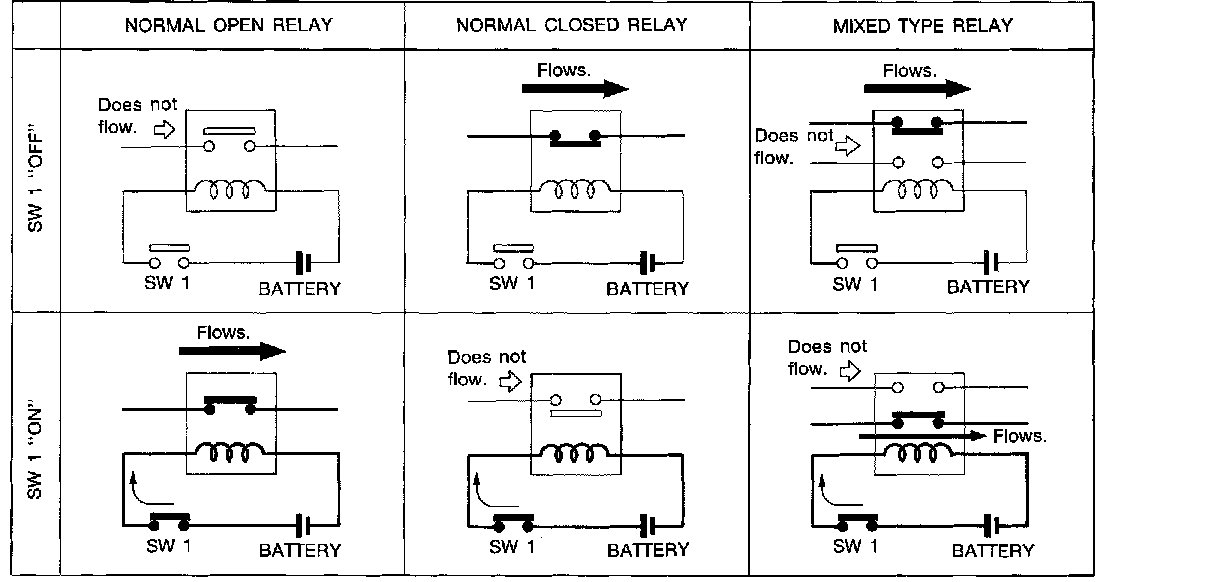

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

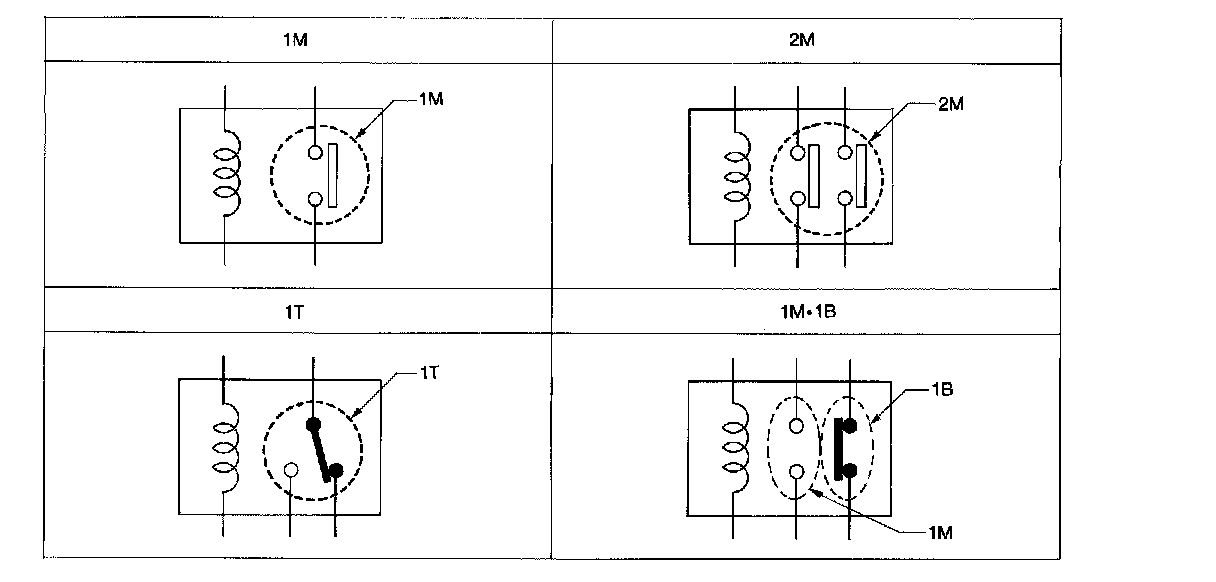

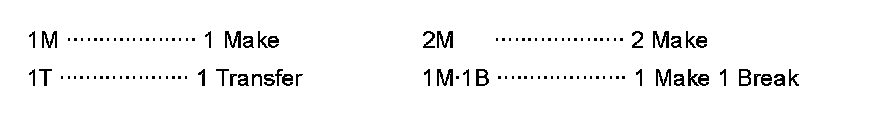

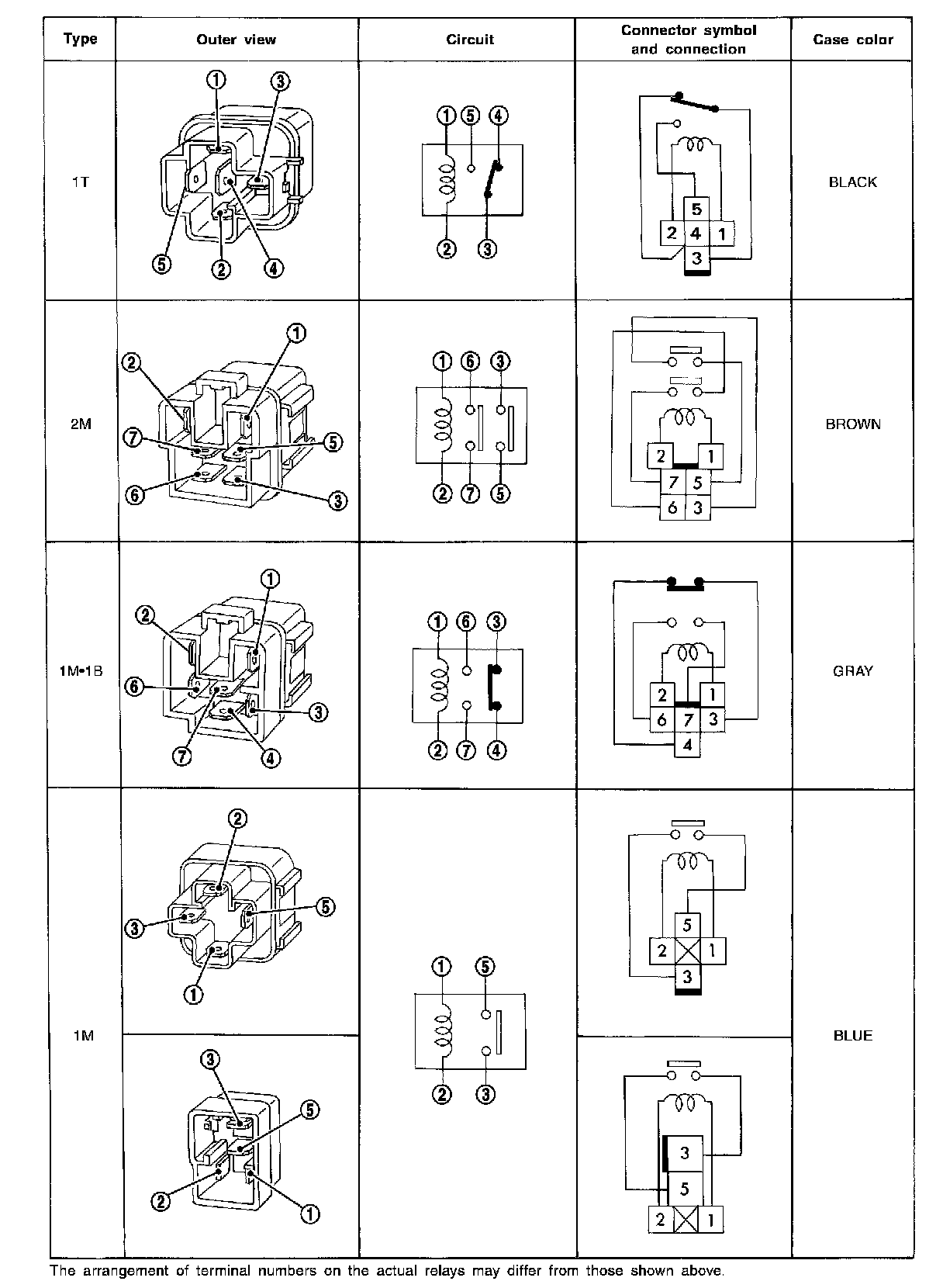

TYPE OF STANDARDIZED RELAYS
