Seat

DRIVER SEAT CONTROL UNIT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

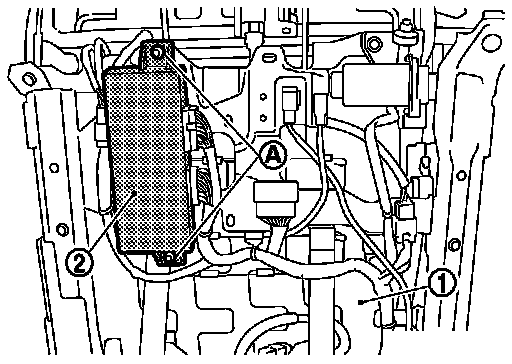

1.Remove driver seat (1). Refer to "Removal and Installation" Removal and Installation.
2.Remove mounting bolts (A).
3.Remove driver seat control unit (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
