Fuel Line Coupler: Service and Repair




FUEL SYSTEM

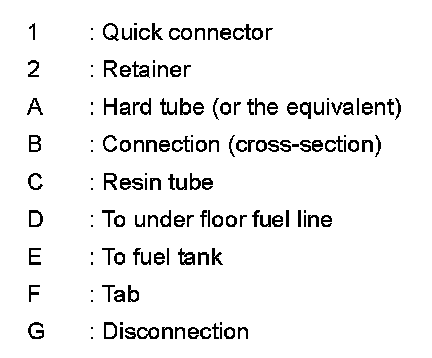

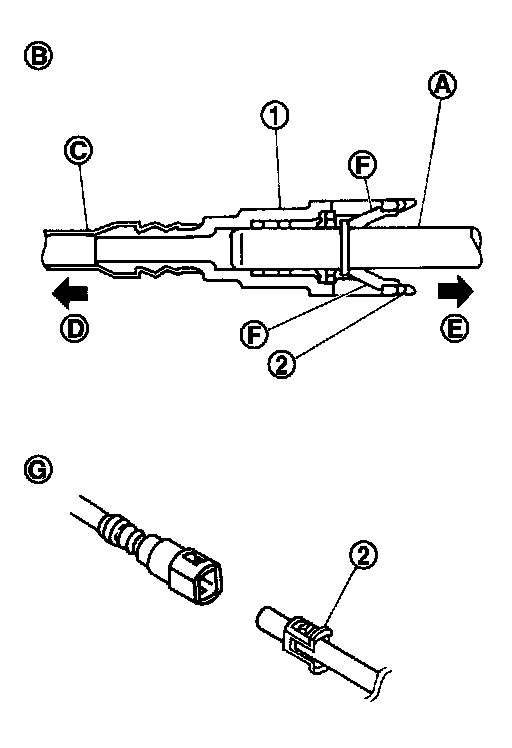

Quick Connector


CAUTION:





- After connecting fuel tube quick connectors, check quick connectors are secure.





- Ensure that connector and resin tube never contact any adjacent parts.
