VVEL Control Module

VVEL CONTROL MODULE

Reference Value

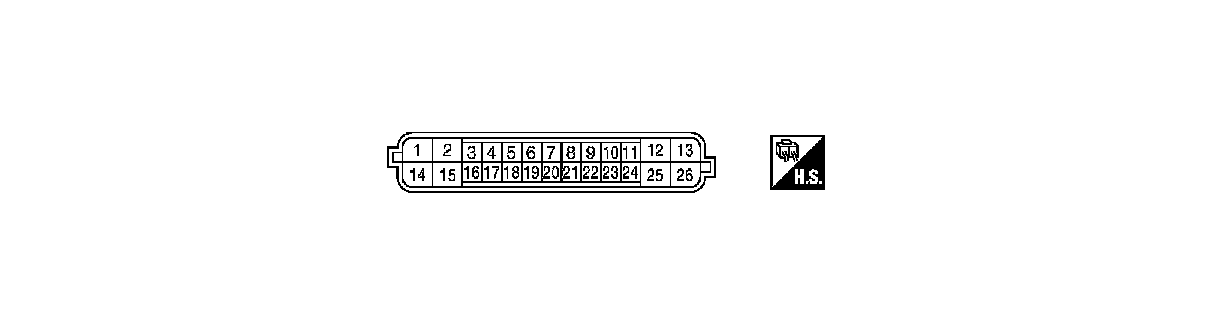

TERMINAL LAYOUT

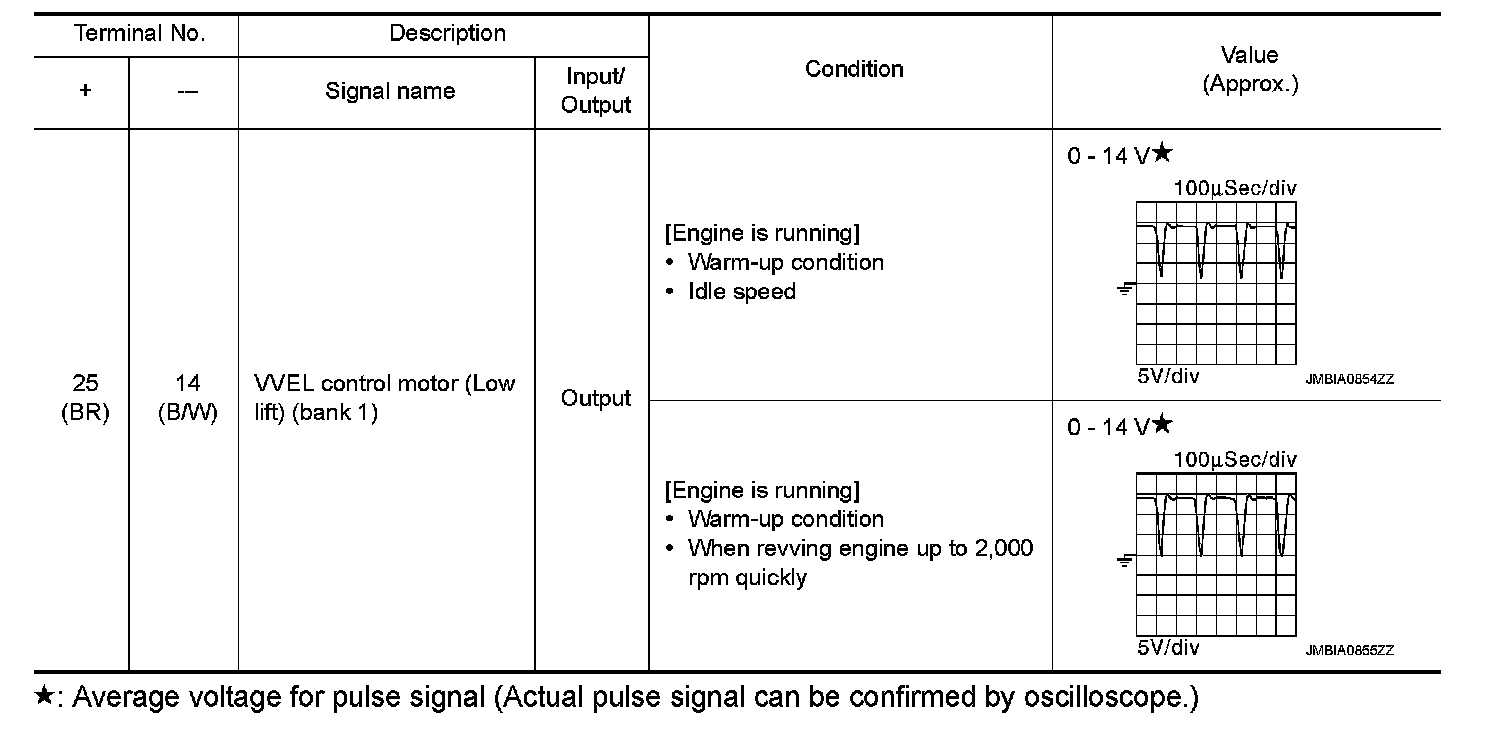

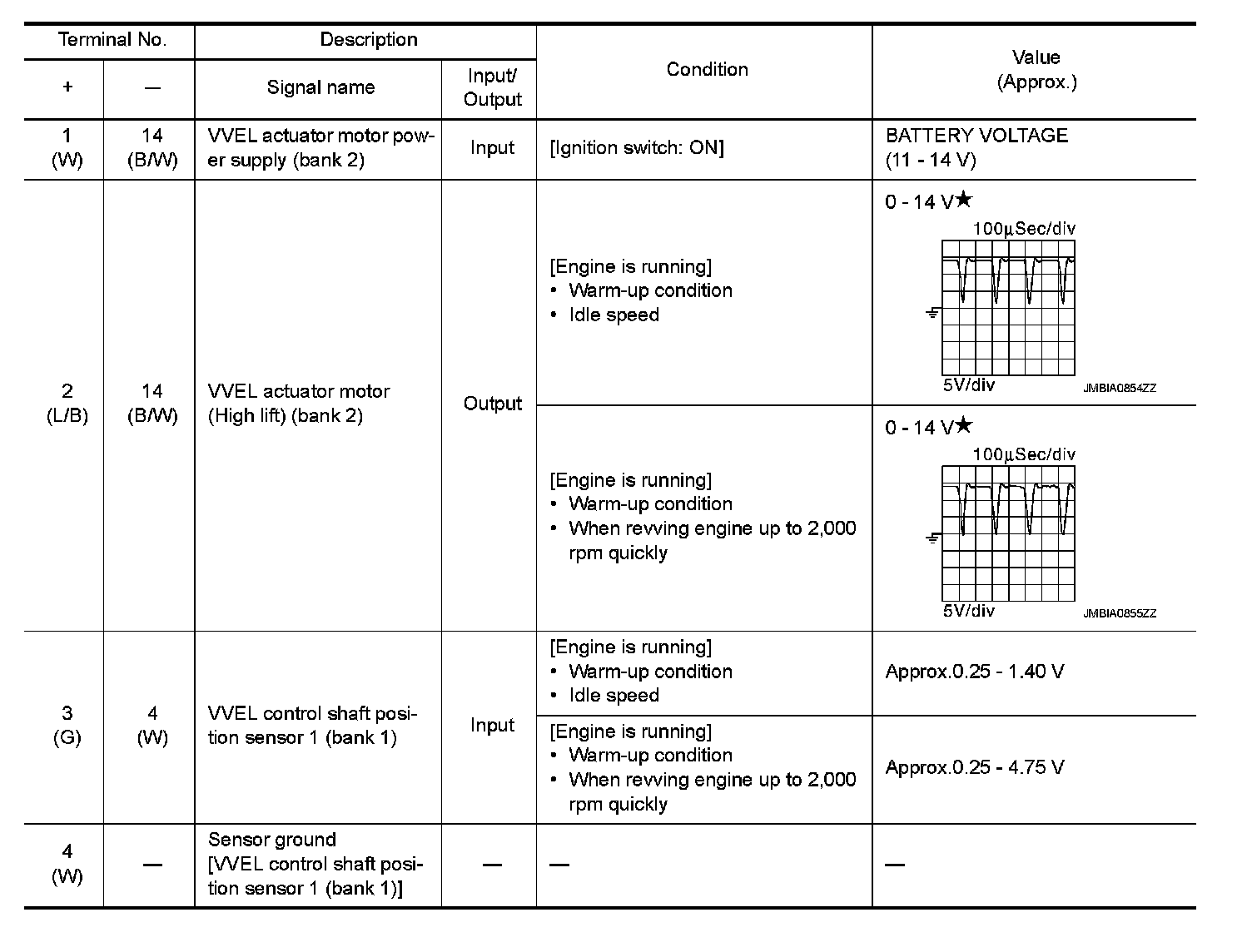

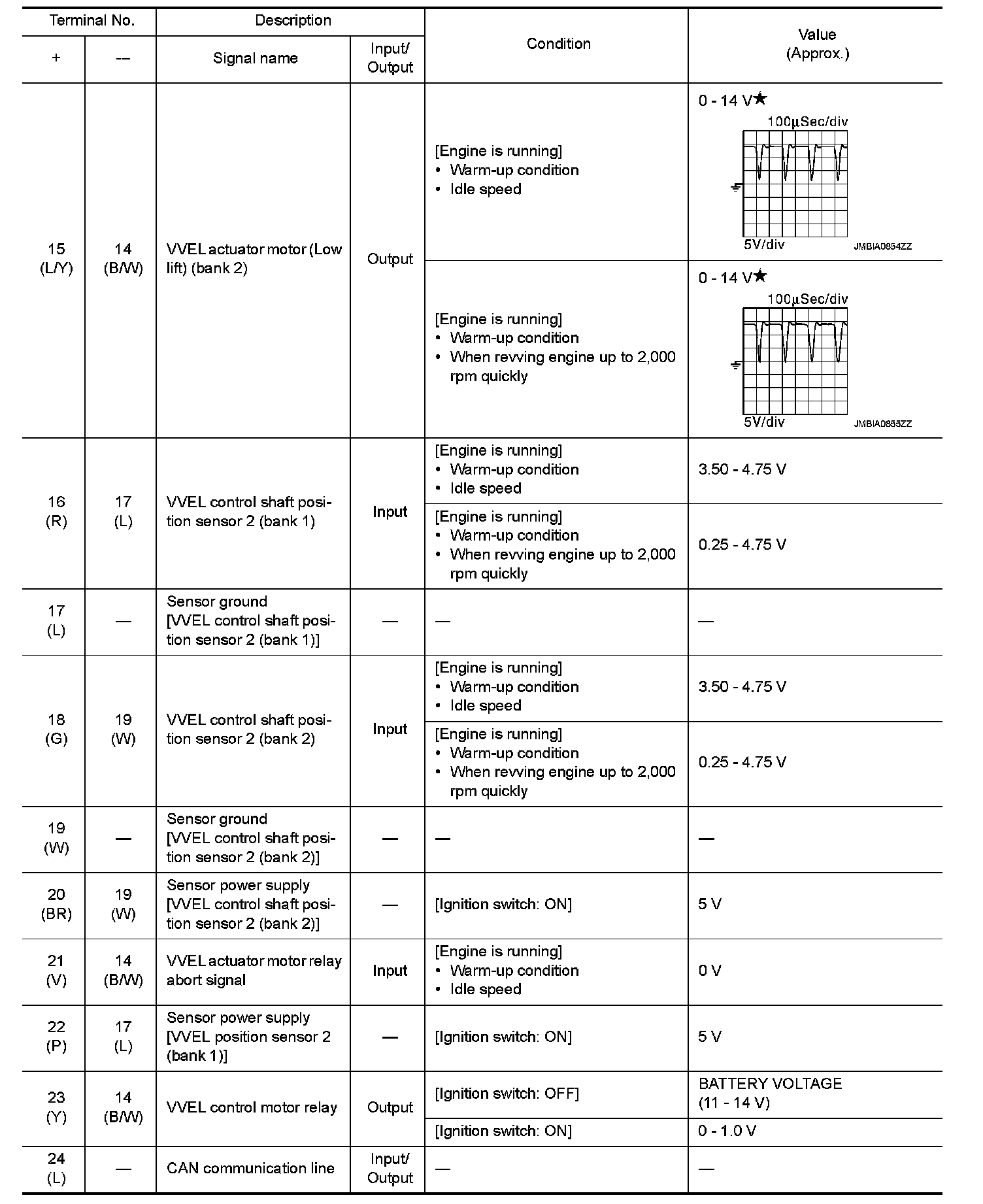

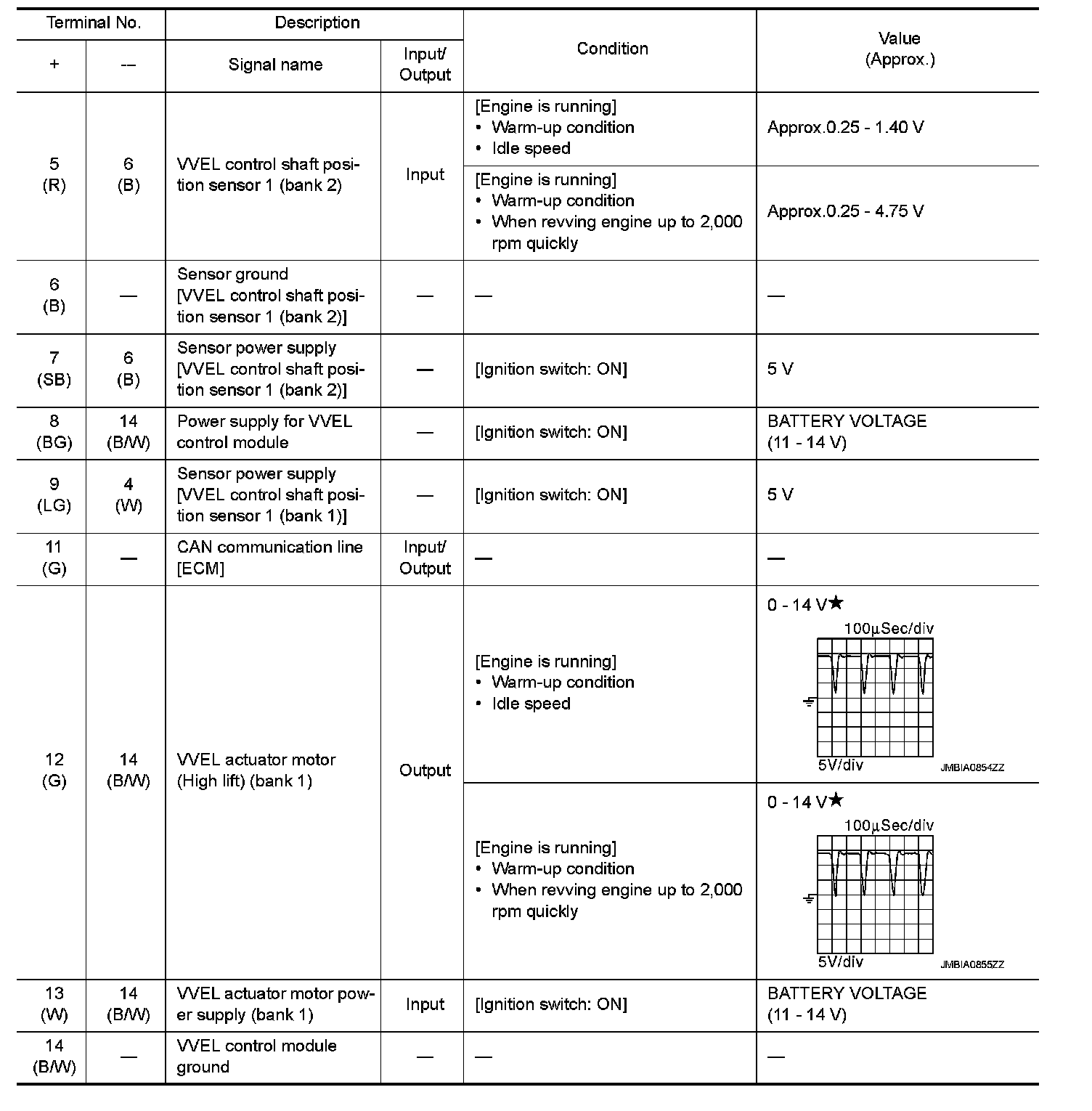

PHYSICAL VALUES

NOTE:
- VVEL control module is located behind the IPDM E/R. For this inspection, remove hoodledge cover (RH).
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.




















: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
