CAN Diagnostic Support Monitor

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor

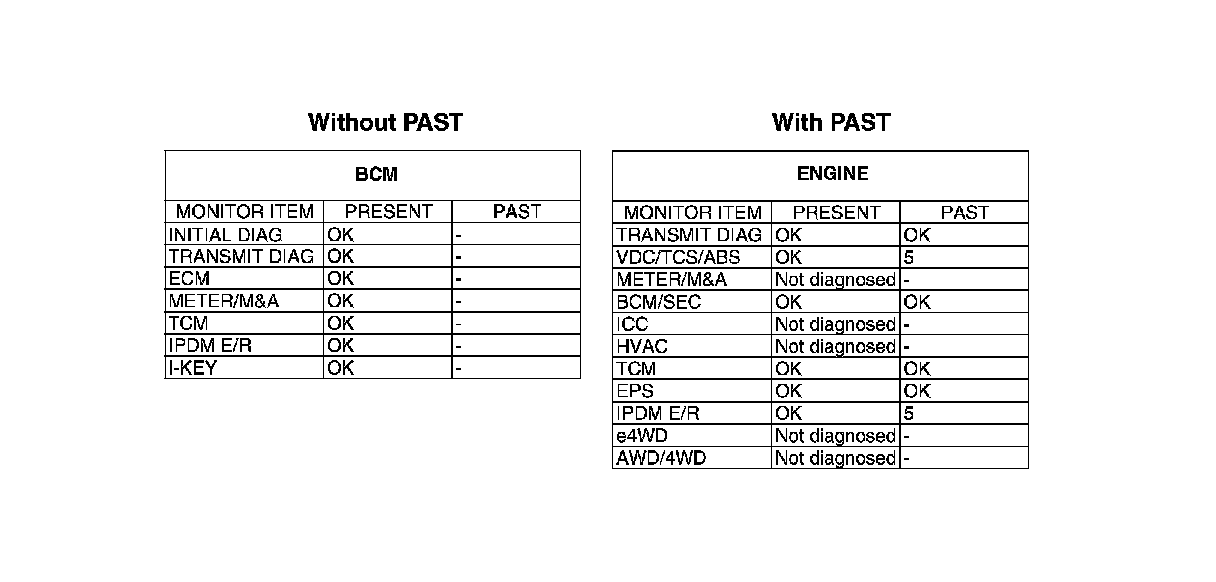

MONITOR ITEM (CONSULT)

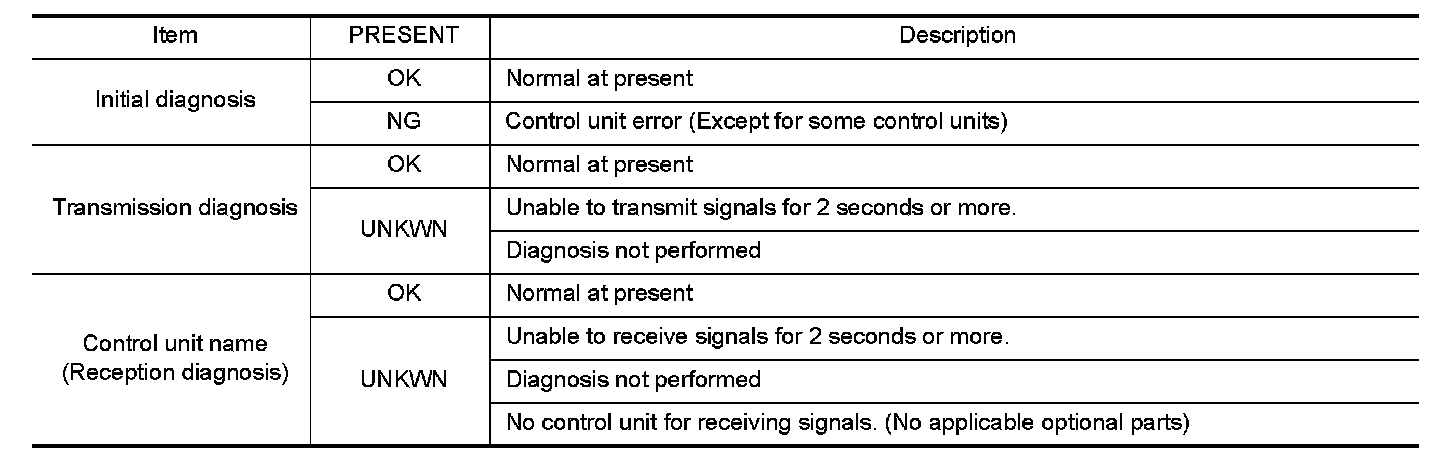

Without PAST

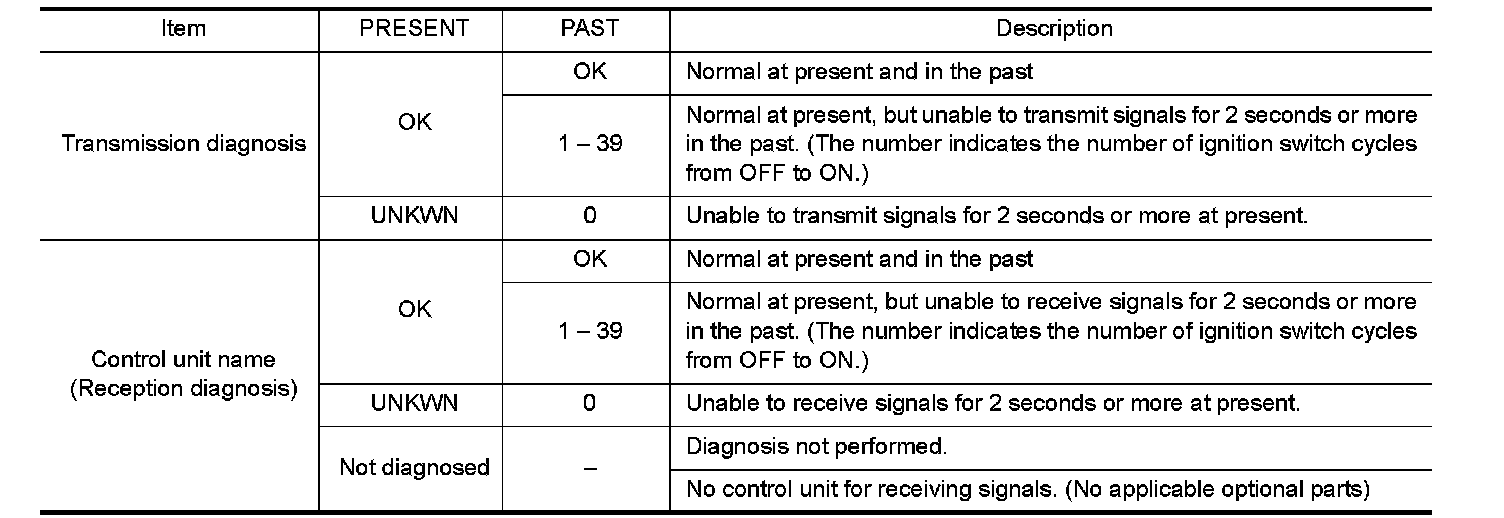

With PAST






MONITOR ITEM (ON-BOARD DIAGNOSIS)

NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor.
Example: Vehicle Display
