CAN

C/ROOF BRANCH LINE CIRCUIT

Diagnosis Procedure


1. CHECK CONNECTOR

1.Turn the ignition switch OFF.
2.Disconnect the battery cable from the negative terminal.
3.Check the terminals and connectors of the retractable hard top control unit for damage, bend and loose connection (unit side and connector side).
Is the inspection result normal?
YES- GO TO 2.
NO- Repair the terminal and connector.

2. CHECK HARNESS FOR OPEN CIRCUIT

1.Disconnect the connector of retractable hard top control unit.

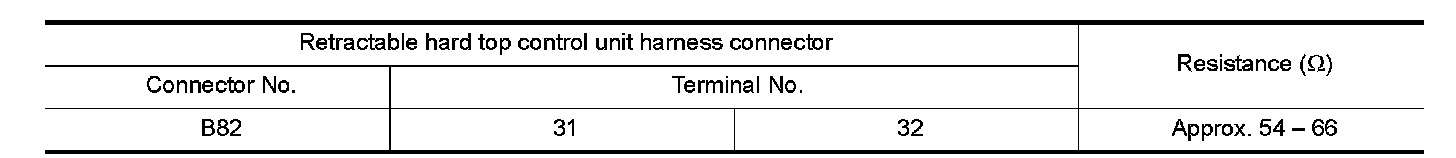

2.Check the resistance between the retractable hard top control unit harness connector terminals.





Is the measurement value within the specification?
YES- GO TO 3.
NO- Repair the retractable hard top control unit branch line.

3. CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the retractable hard top control unit. Refer to "Diagnosis Procedure" Diagnosis Procedure.
Is the inspection result normal?
YES (Present error)-Replace the retractable hard top control unit. Refer to "Removal and Installation" Service and Repair.
YES (Past error)-Error was detected in the retractable hard top control unit branch line.
NO- Repair the power supply and the ground circuit.
