CAN System Specification Chart

CAN COMMUNICATION SYSTEM

CAN System Specification Chart

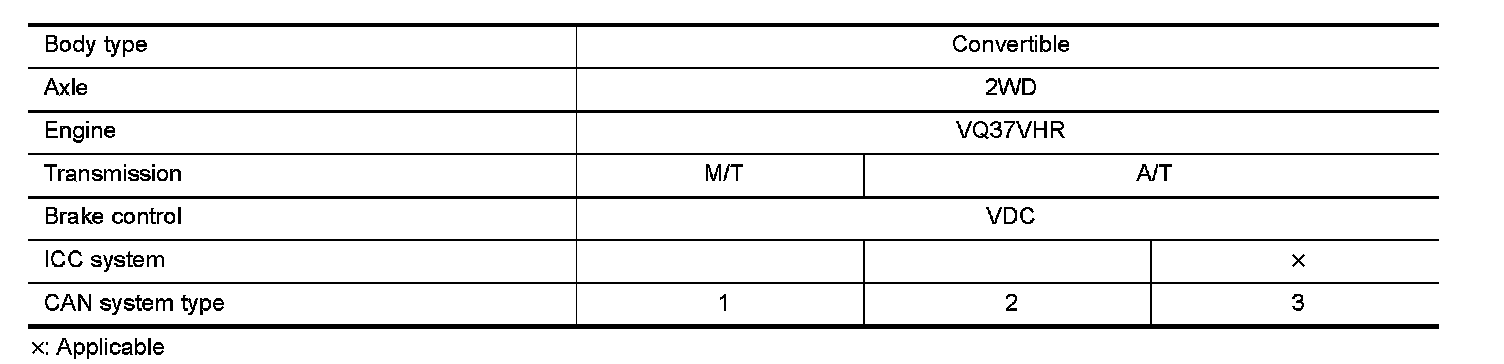

Determine CAN system type from the following specification chart.
NOTE:
Refer to "Trouble Diagnosis Procedure" Trouble Diagnosis Procedure for how to use CAN system specification chart.

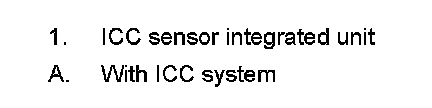

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE:

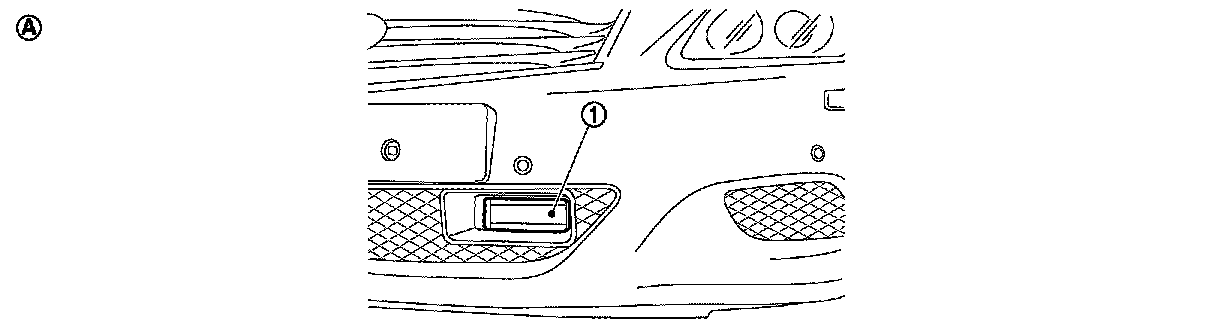

Check CAN system type from the vehicle shape and equipment.
