CAN Communication Signal Chart

CAN COMMUNICATION SYSTEM

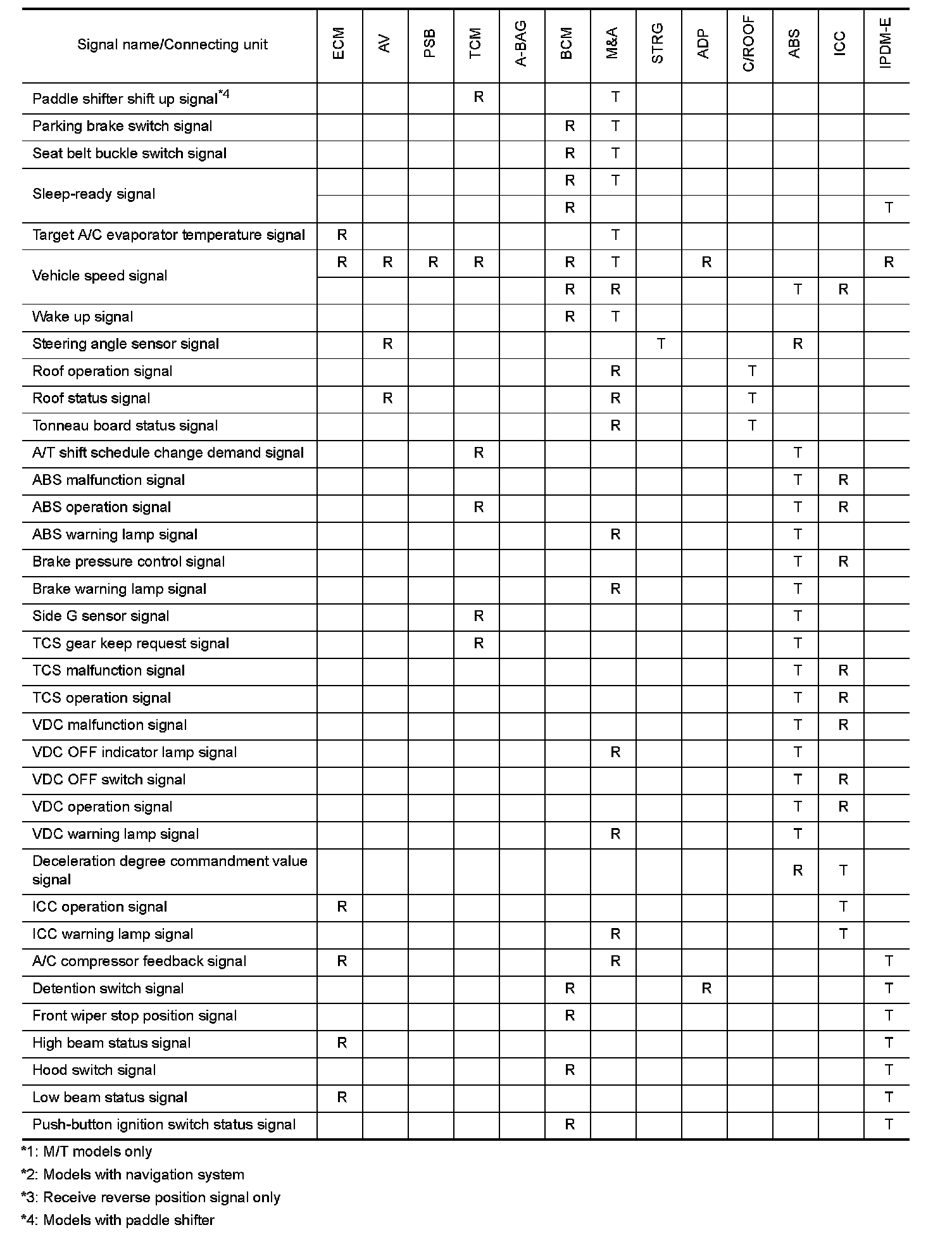

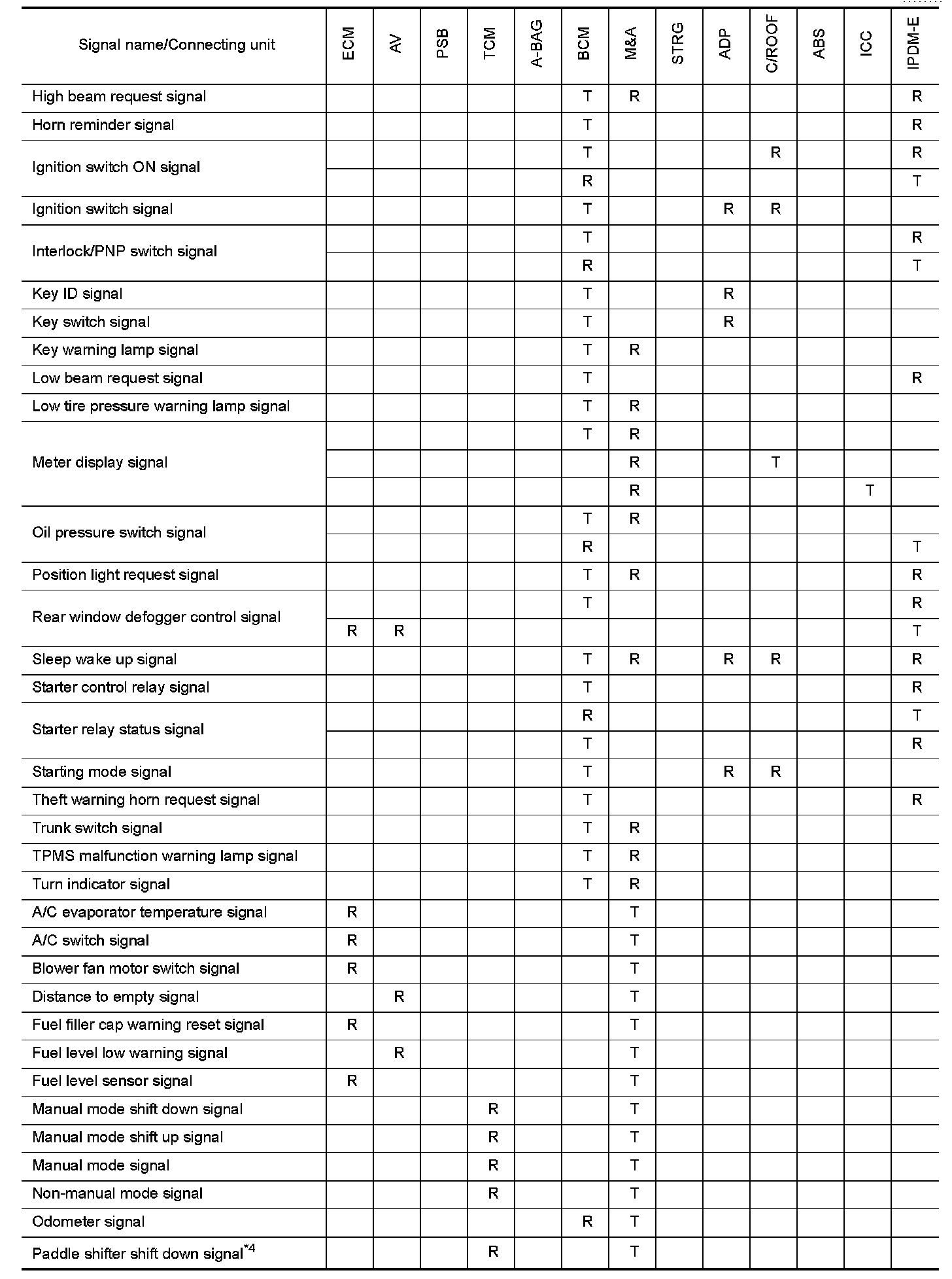

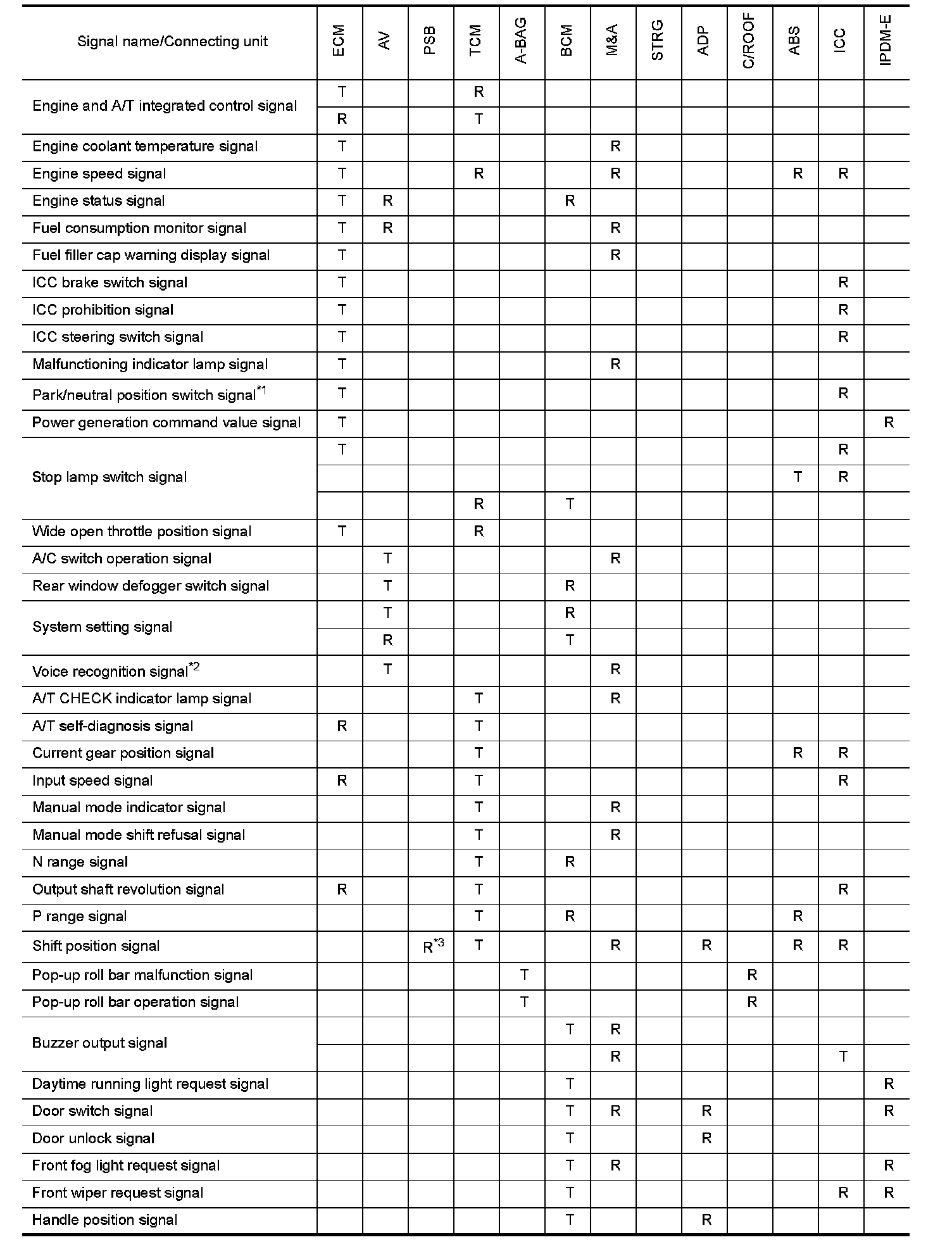

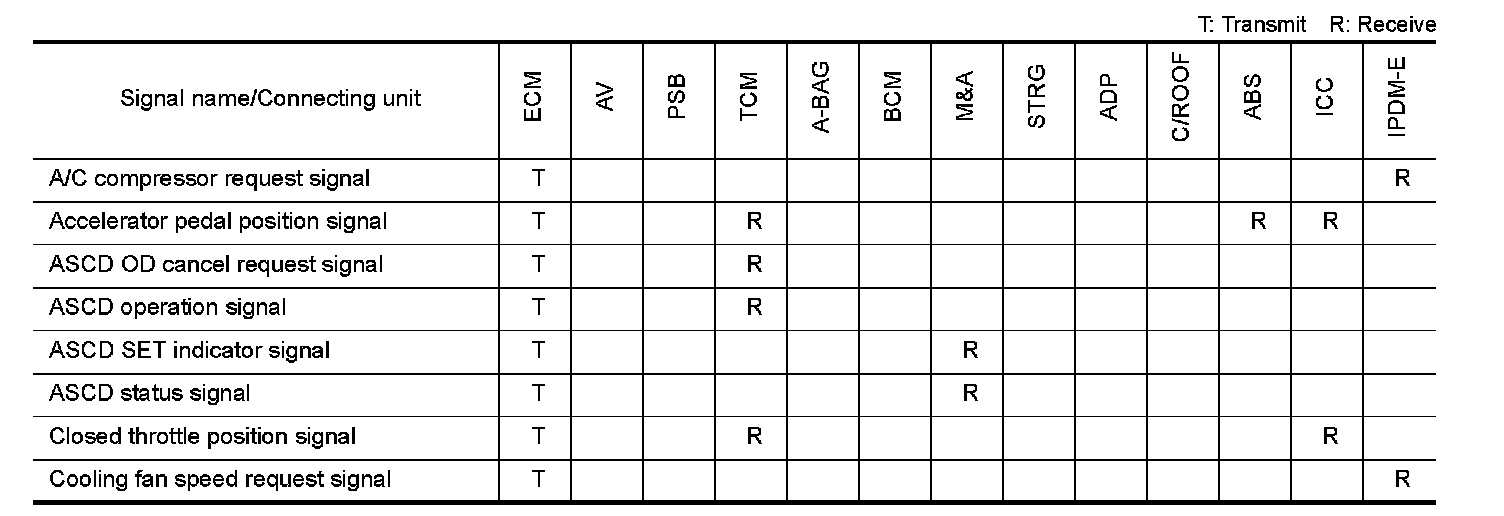

CAN Communication Signal Chart

Refer to "How to Use CAN Communication Signal Chart" How to Use CAN Communication Signal Chart for how to use CAN communication signal chart.
NOTE:
Refer to "Abbreviation List" Abbreviation List for the abbreviations of the connecting units.
T: Transmit: Receive
