Removal and Installation

POWER SOCKET

FRONT POWER SOCKET : Removal and Installation


REMOVAL

1.Remove console finisher assembly. Refer to "A/T MODELS : Exploded View" Exploded View.

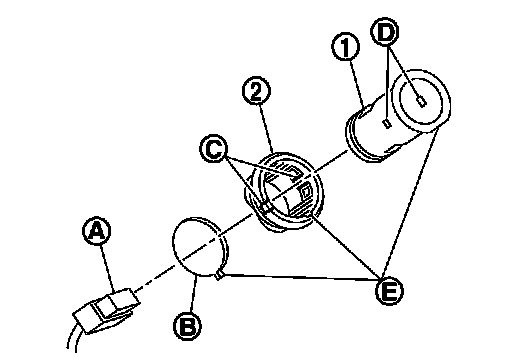

2.Disconnect power socket connector (A).





3.Pull out inner socket (1) by pushing the ring pawl (C) from the inner socket hole (square) (D).
4.Remove ring (2) from console finisher assembly while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring and console finisher assembly.
