NVH Troubleshooting Chart




NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

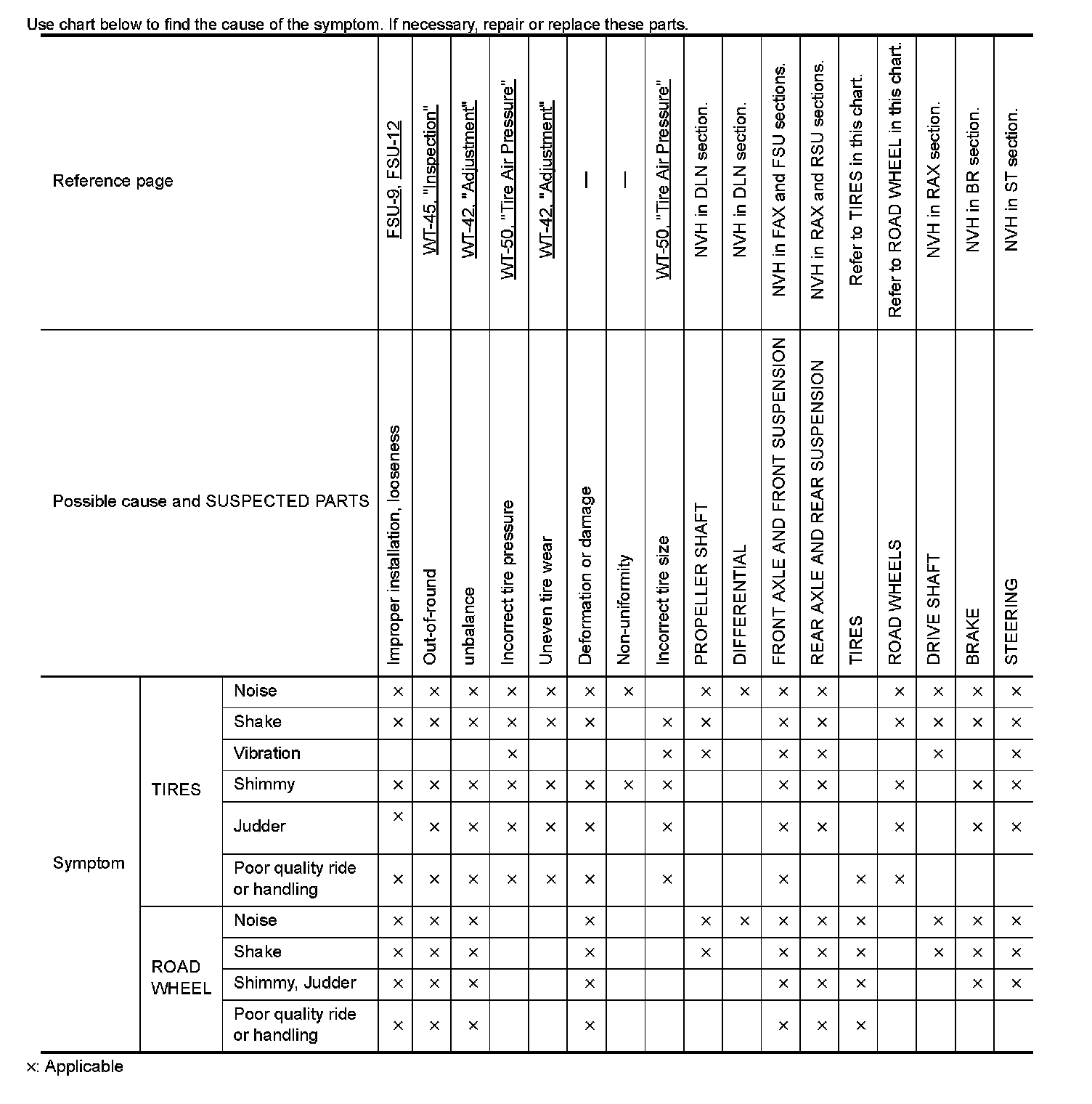

NVH Troubleshooting Chart

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.
