Refilling

REAR DIFFERENTIAL GEAR OIL

Refilling

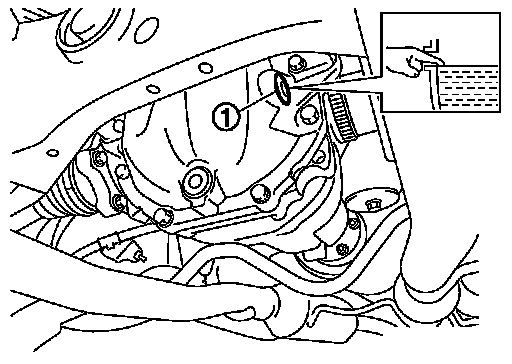

1.Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.


Oil capacity: Refer to "General Specification" General Specification.

2.After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly. Refer to "M/T : Exploded View" M/T (M/T), "A/T : Exploded View" A/T (A/T).

CAUTION:
Never reuse gasket.
