Draining

REAR DIFFERENTIAL GEAR OIL

Draining

1.Stop the engine.

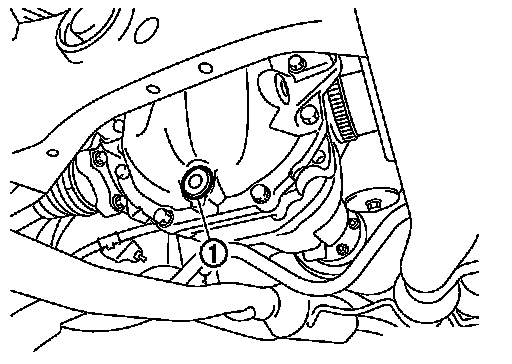

2.Remove drain plug (1) and drain gear oil.
3.Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to "M/T : Exploded View" M/T (M/T), "A/T : Exploded View" A/T (A/T).

CAUTION:
Never reuse gasket.
