Trunk Room Lamp Switch

TRUNK ROOM LAMP SWITCH

Description

It detects engagement of trunk lid lock assembly and trunk lid striker.


Component Function Check


1. CHECK FUNCTION

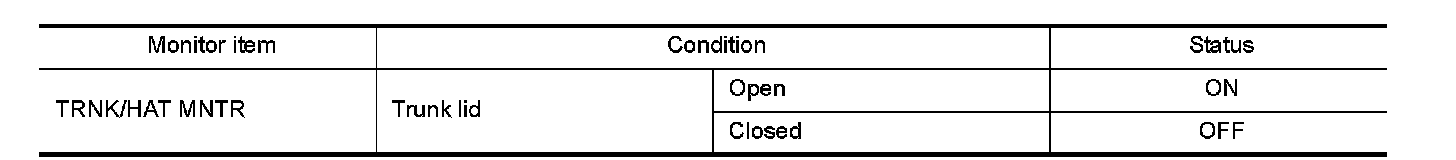

Check ("TRNK/HAT MNTR") in BCM "Data Monitor" mode using CONSULT.





Is the inspection result normal?
YES- Trunk room lamp switch is OK.
NO- Refer to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect trunk room lamp switch connector.
3.Check signal between trunk room lamp switch harness connector and ground using oscilloscope.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK TRUNK ROOM LAMP SWITCH CIRCUIT

1.Disconnect BCM connector, trunk closure control unit connector and retractable hard top control unit connector.

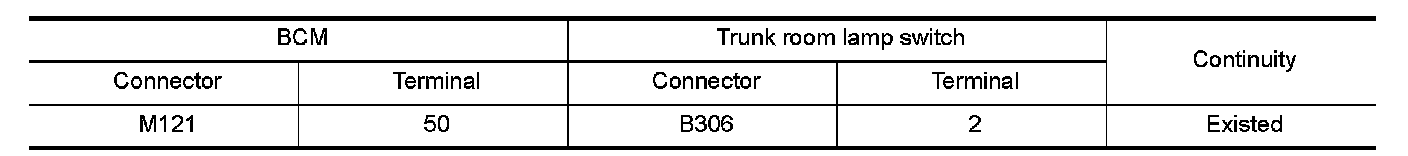

2.Check continuity between BCM harness connector and trunk room lamp switch harness connector.

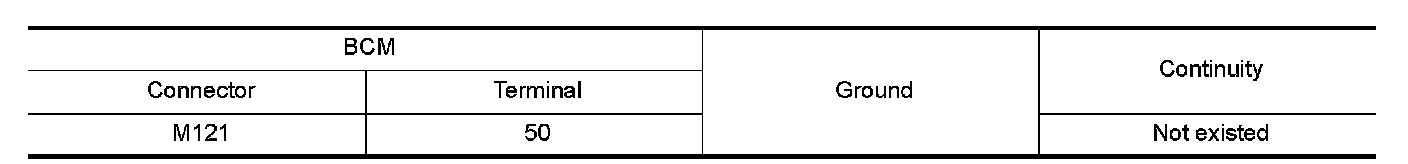

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- Replace BCM. Refer to "Removal and Installation" Removal and Installation.
NO- Repair harness or connector.

3. CHECK TRUNK ROOM LAMP SWITCH GROUND CIRCUIT

1.Disconnect trunk lid opener actuator connector.
2.Check continuity between retractable hard top control unit harness connector and trunk room lamp switch harness connector.





3.Check continuity between retractable hard top control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK RETRACTABLE HARD TOP CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT

Refer to "RETRACTABLE HARD TOP CONTROL UNIT : Diagnosis Procedure" Retractable Hard Top Control Unit Diagnosis Procedure.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace the malfunctioning parts.

5. CHECK TRUNK ROOM LAMP SWITCH GROUND

1.Connect retractable hard top control unit connector.

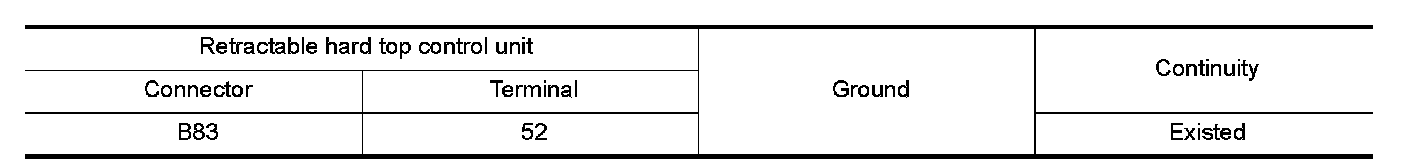

2.Check continuity between retractable hard top control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Replace retractable hard top control unit. Refer to "Removal and Installation" Service and Repair.

6. CHECK TRUNK ROOM LAMP SWITCH

Refer to "Component Inspection" .
Is the inspection result normal?
YES- GO TO 7.
NO- Replace trunk room lamp switch (trunk lid lock assembly). Refer to "TRUNK LID LOCK : Removal and Installation" Removal and Installation.

7. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END


Component Inspection


1. CHECK TRUNK ROOM LAMP SWITCH

1.Turn ignition switch OFF.
2.Disconnect trunk room lamp switch connector.

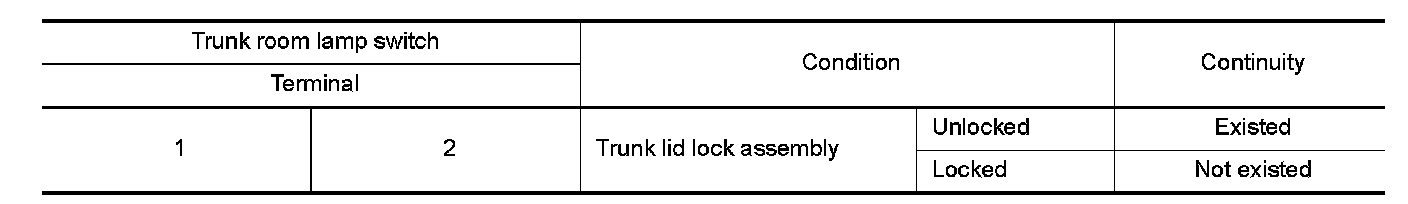

3.Check continuity between trunk room lamp switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace trunk room lamp switch (trunk lid lock assembly). Refer to "TRUNK LID LOCK : Removal and Installation" Removal and Installation.
