CONSULT Function

DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT Function (BCM - INT LAMP)

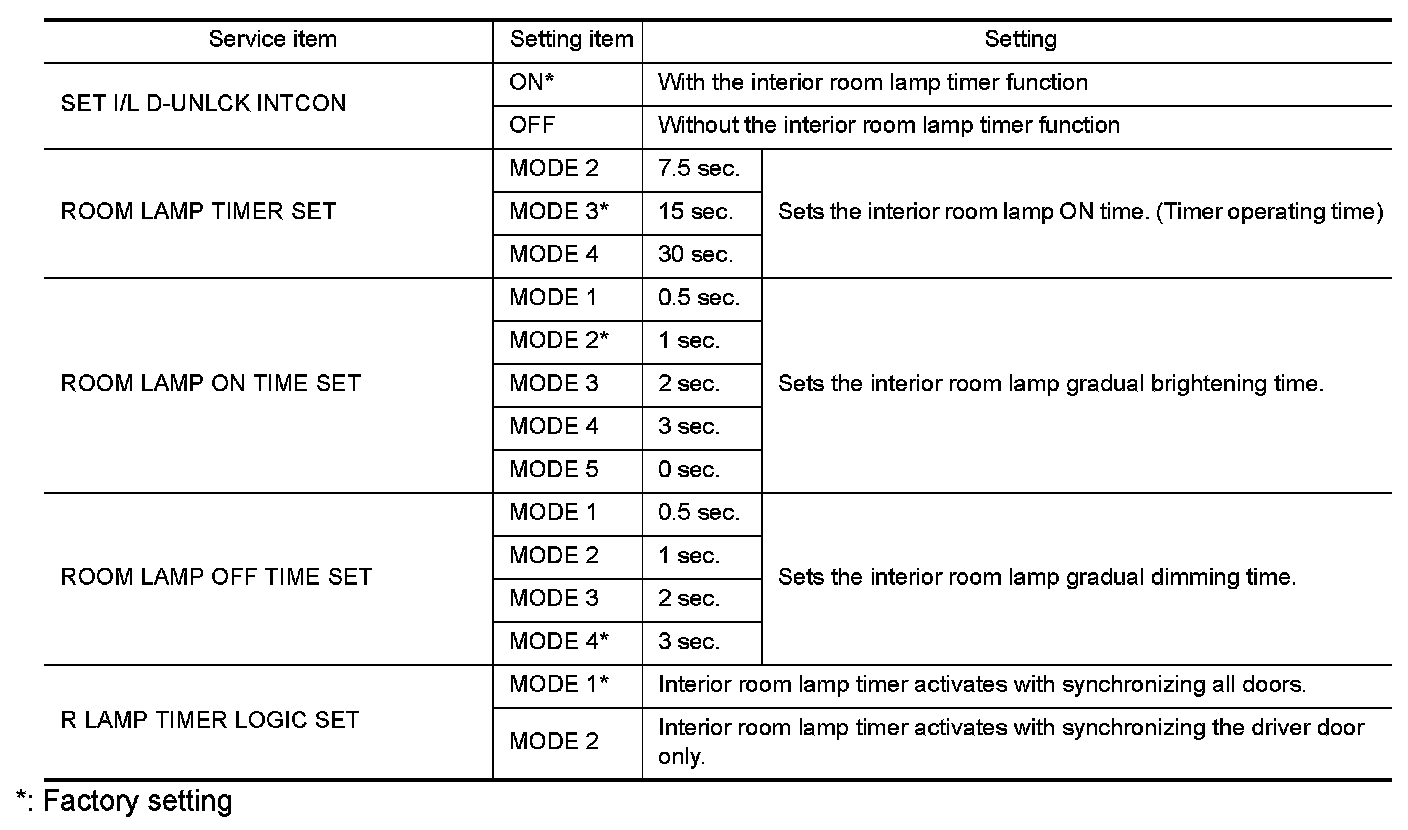

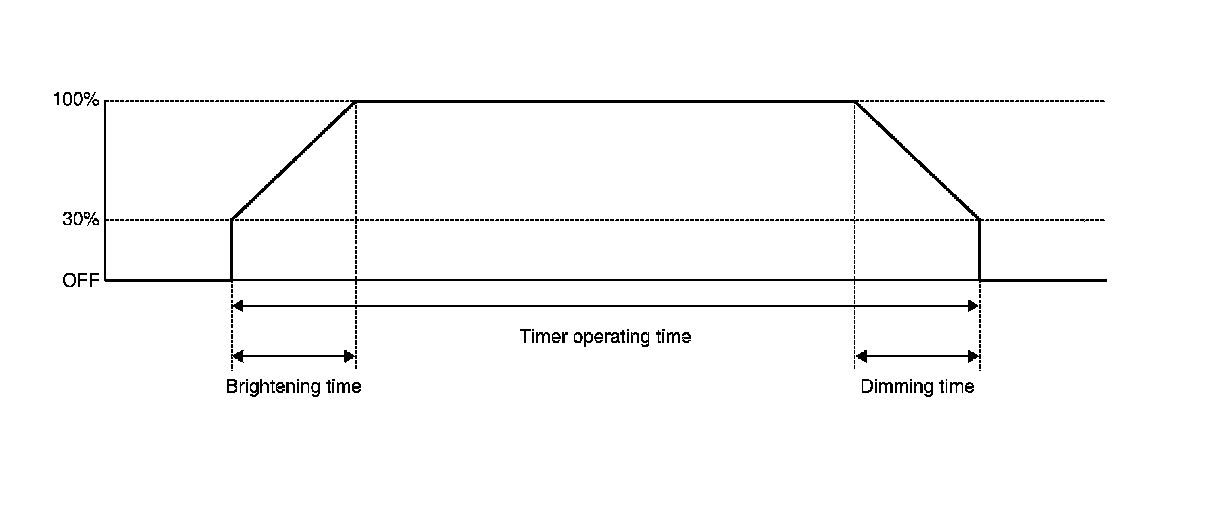

WORK SUPPORT











*: Factory setting

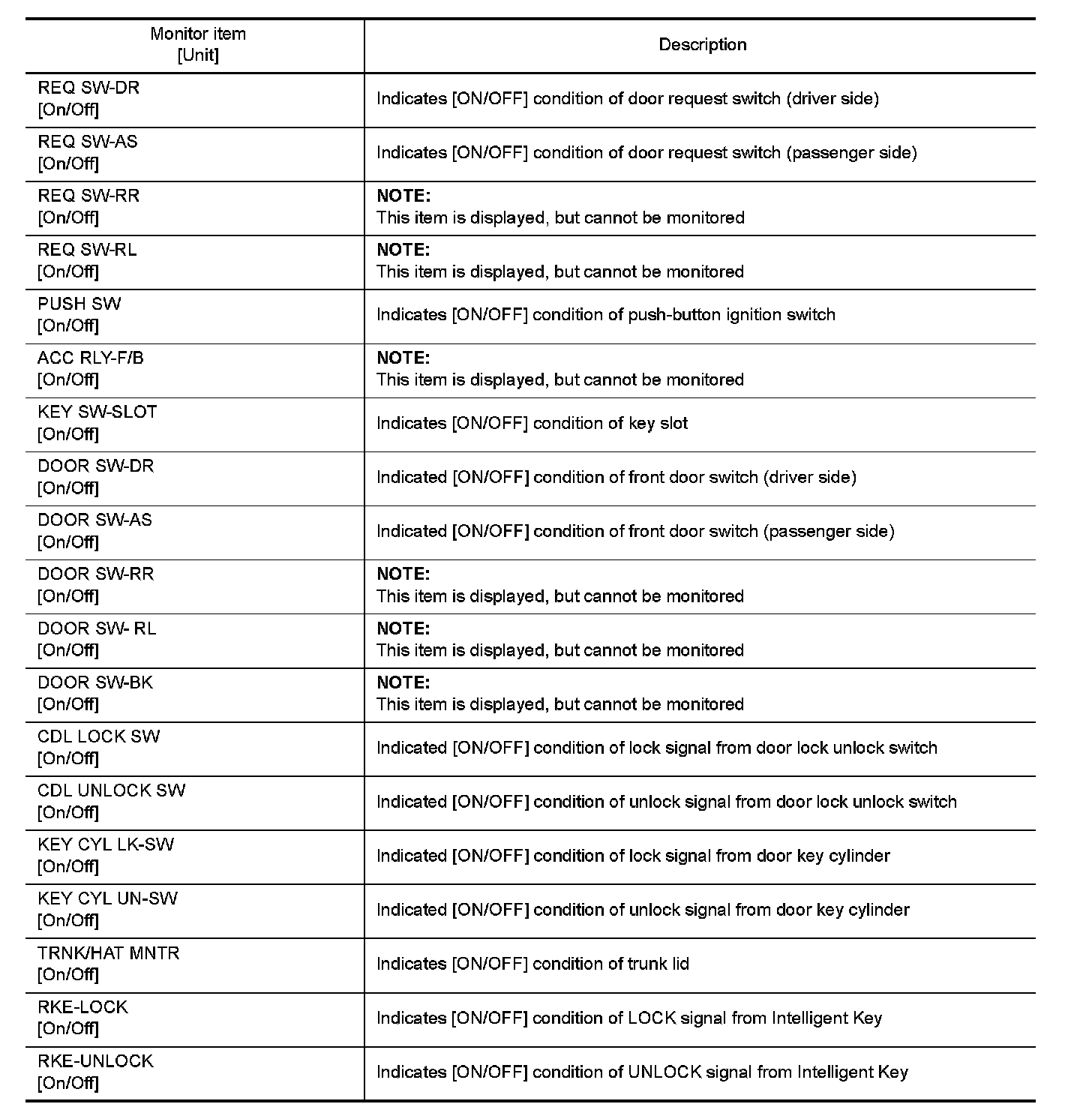

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

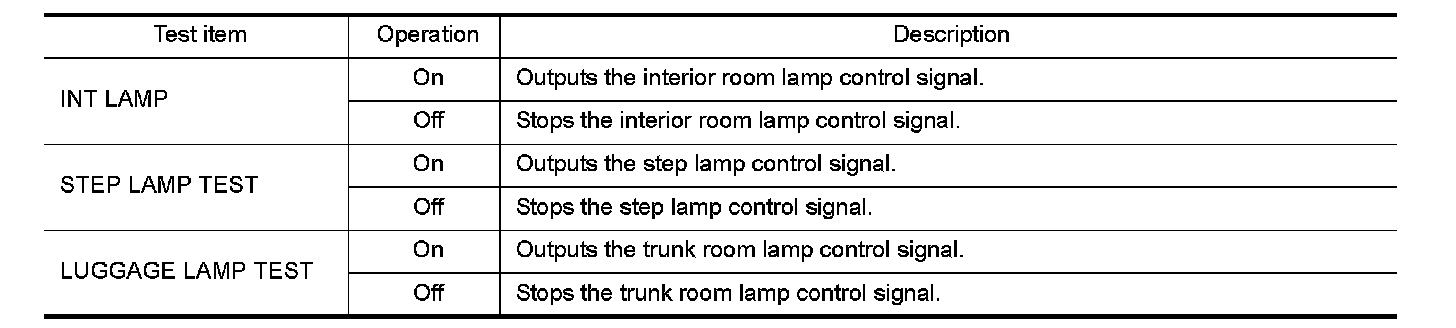

ACTIVE TEST
