Removal and Installation




MAP LAMP

Removal and Installation


REMOVAL

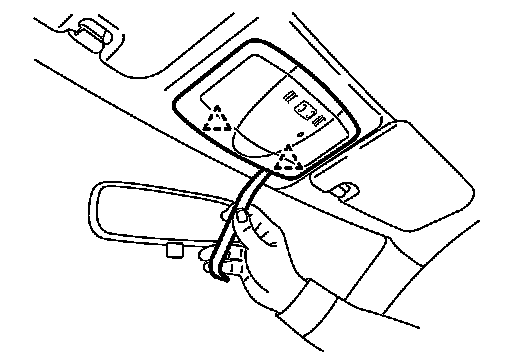

1.Insert any appropriate tool the gap between the map lamp and the roof front finisher.










2.Disconnect the connector. Remove the map lamp.

INSTALLATION

Install in the reverse order of removal.
