Disassembly and Assembly

MAP LAMP

Disassembly and Assembly


DISASSEMBLY

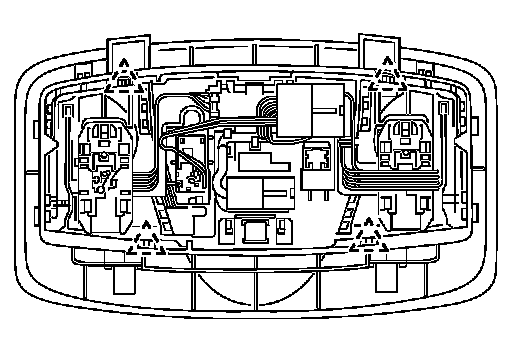

1.Disengage pawls.










2.Remove the map lamp housing.
3.Remove the lens.
4.Remove the bulb.

ASSEMBLY

Assemble in the reverse order of disassembly.
