Removal and Installation

FRONT COMBINATION LAMP

Removal and Installation


REMOVAL


CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1.Remove the front bumper fascia. Refer to "Removal and Installation" Removal and Installation.
2.Remove the mounting bolts.

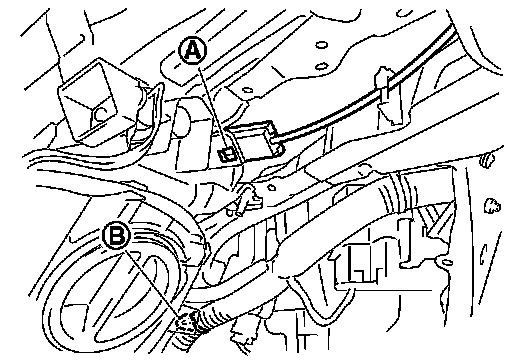

3.Remove the holding clip (A)* and the harness clip (B).





*: Left side only
4.Pull out the headlamp assembly forward the vehicle.
5.Disconnect the connector before removing the headlamp housing assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to "Description" Description.
