Electrical Diagrams

FRONT FOG LAMP SYSTEM

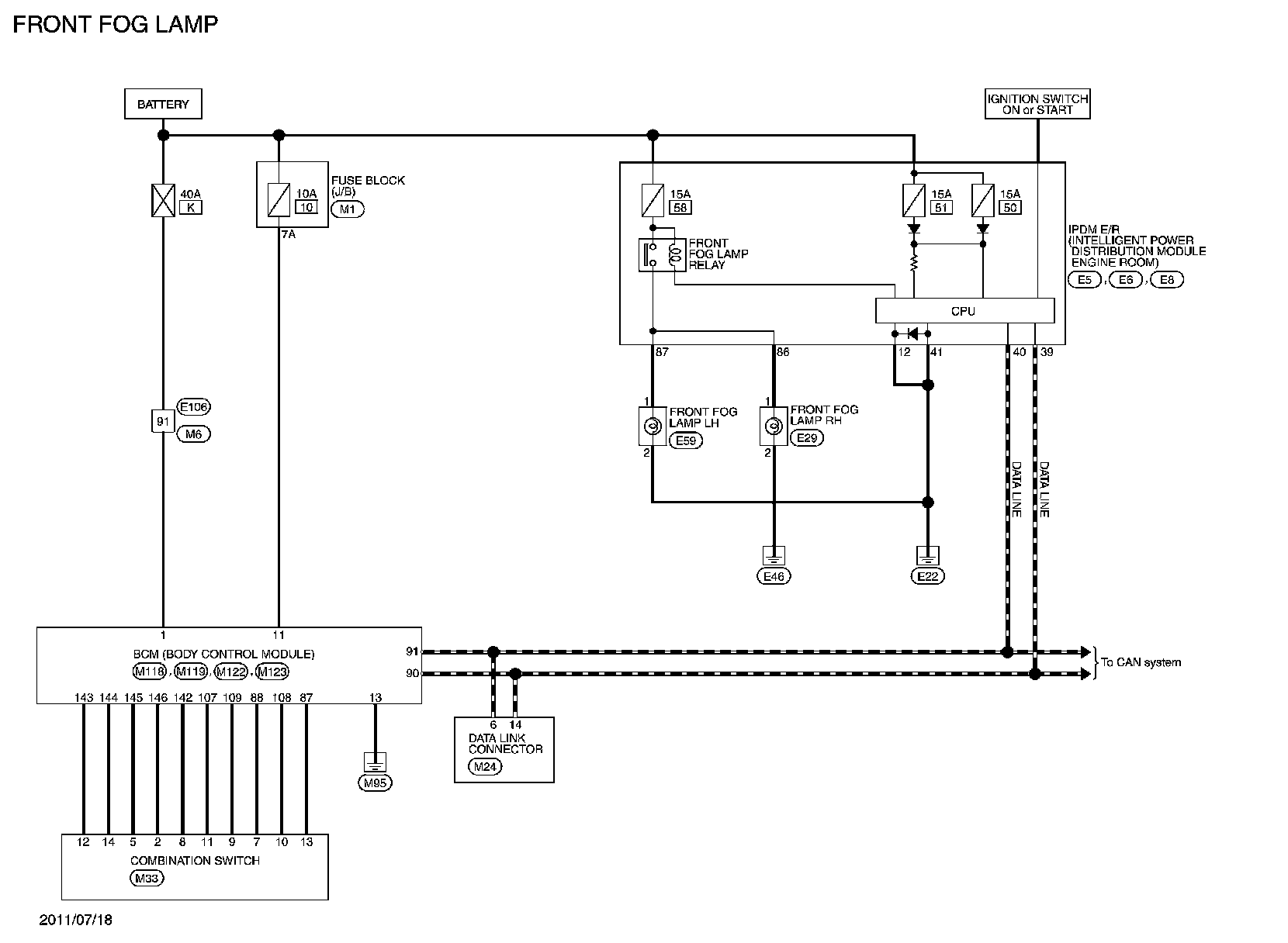

Wiring Diagram - FRONT FOG LAMP

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "Connector Information" Connector Information.
